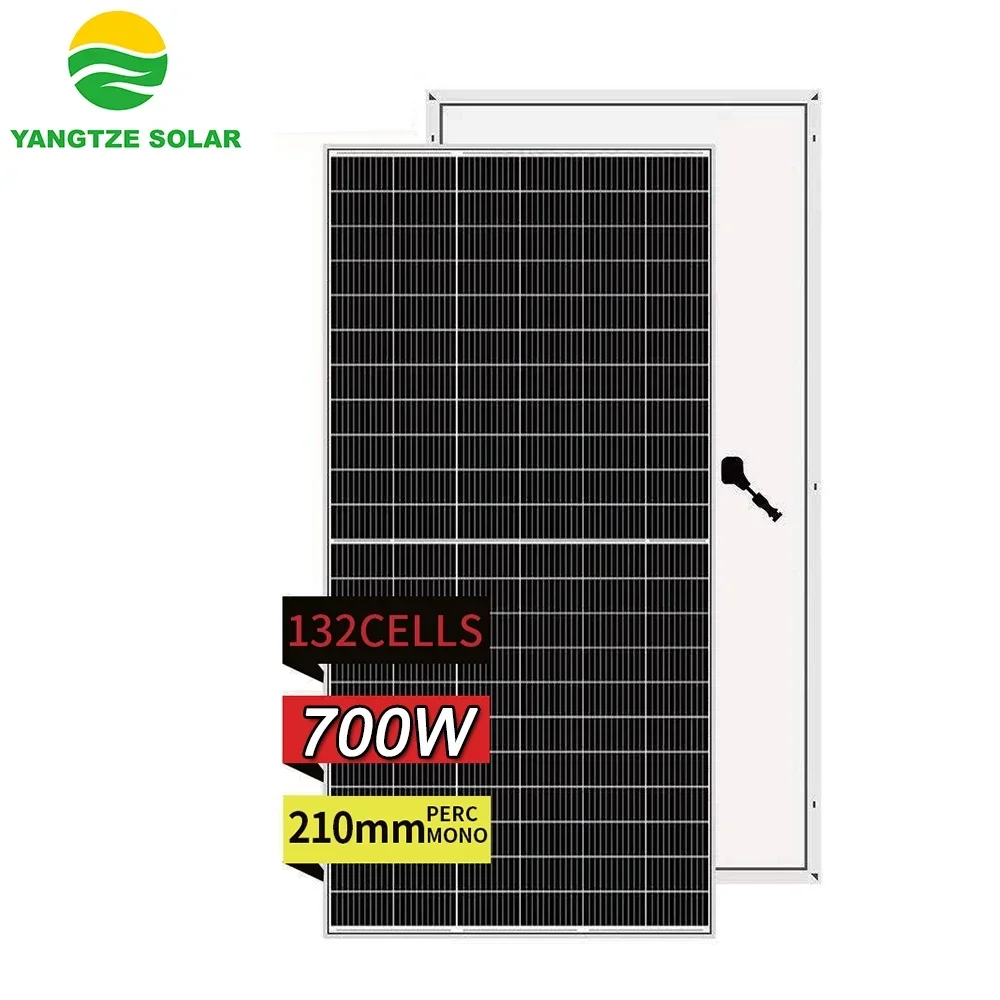

680w 690w 700w Highest Power free shipping paneles china best solar panel from Yangtze Brand

COD: 1005007505696725 Categoria: Tag:

842,02

Pagamento sicuro garatrantito
For more information, please contact +86 13776330093

Product Description





Model Type
YS660M-66
YS670M-66
YS680M-66
YS690M-66
YS700M-66
Rated Maximum Power at STC
660W
670W
680W
690W
700W
Maximum Power Voltage (Vmp)
38.38V
38.68V
38.98V
39.28V
39.58V
Maximum Power Current (Imp)
17.20A
17.33A
17.45A
17.57A
17.69A
Open Circuit Voltage ( Voc)
45.55V
45.85V
46.15V
46.45V
46.75V
Short Circuit Current (Isc)
18.45A
18.54A
18.66A
18.79A
18.92A
Module Efficiency
21.1%
21.4%
21.7%
22.0%
22.3%
Working Conditions&Working Conditions
Operating Temperature
-40°c~+85°c
Maximum System Voltage
DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse
25A
Power Tolerance
0~+5W
Temperature Coefficient of Pmax
-0.35%/°c
Temperature Coefficient of Voc
-0.29%/°c
Temperature Coefficient of Isc
+0.048%/°c
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 ‘C, Spectra at AMl.5
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 ‘C, Spectra at AMl.5, Wind at l m/S

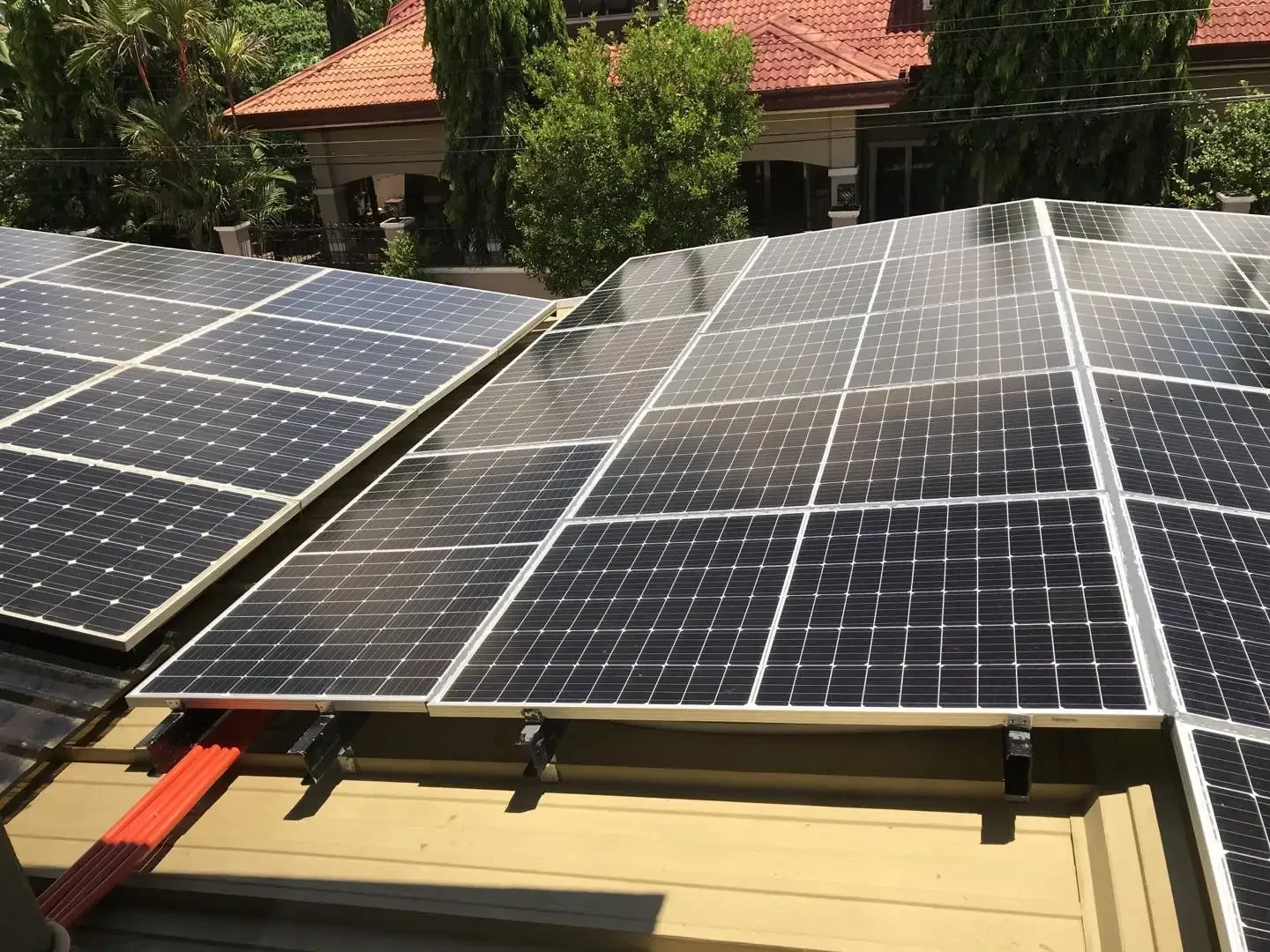

Projects

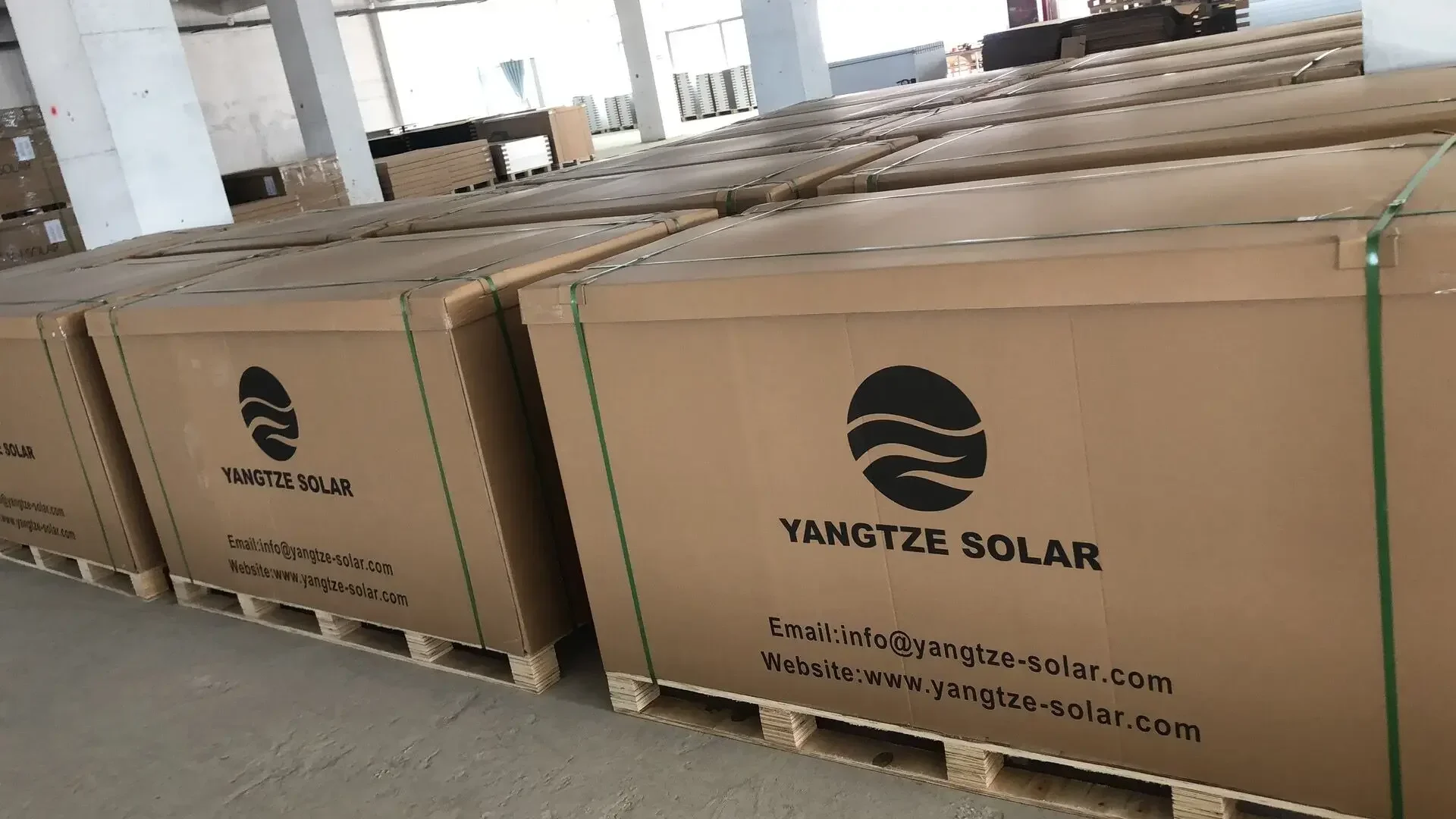

Packaging & Shipping



Company Information



Founded in 1994 , 300MW solar panel production capacity , millions of battery, charge controller and inverter production capacity

Three factories , solar panel factory , battery factory , solar charge controller and inverter factory
Products are exported to more than 150 countries
Products are certified by TUV(Germany) , UL(America) ,CE

Turn-key solar systems are offered , to save the time and money for the clients
Rich experience in overseas construction of solar projects
