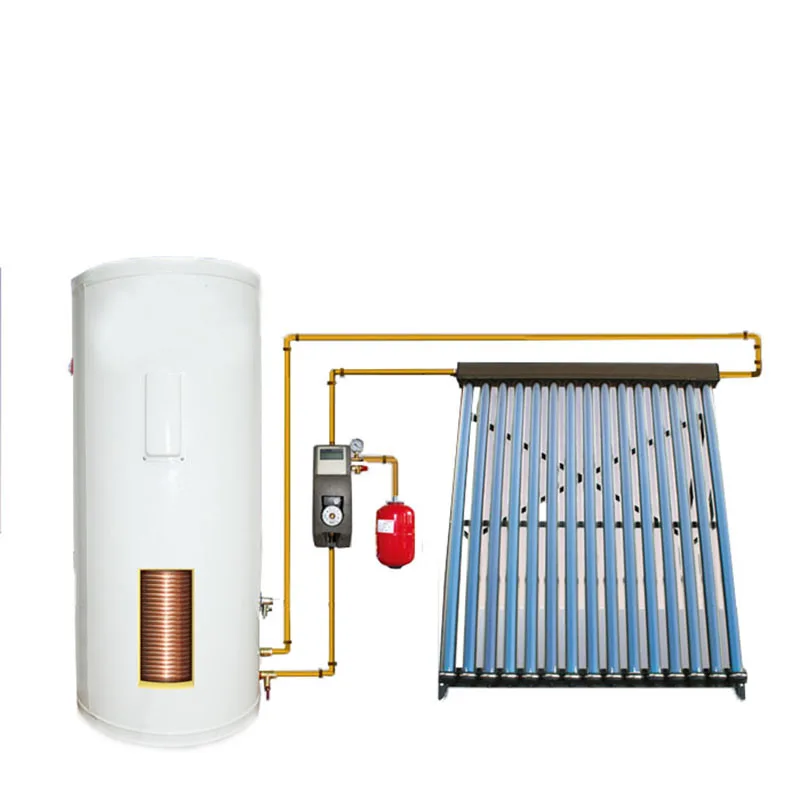

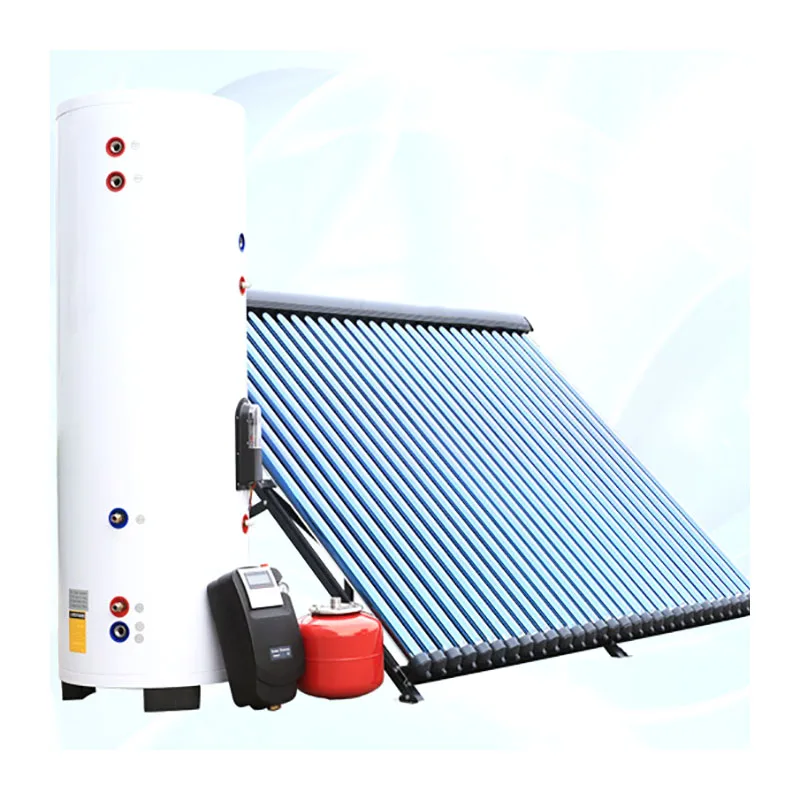

Giant intelligent pressurized heat pipe vacuum tube rooftop solar split solar water heater
Giant intelligent pressurized heat pipe vacuum tube rooftop solar split solar water heater - immagine 2
Giant intelligent pressurized heat pipe vacuum tube rooftop solar split solar water heater - immagine 3
Giant intelligent pressurized heat pipe vacuum tube rooftop solar split solar water heater - immagine 4
Giant intelligent pressurized heat pipe vacuum tube rooftop solar split solar water heater - immagine 5
Giant intelligent pressurized heat pipe vacuum tube rooftop solar split solar water heater - immagine 6

Giant intelligent pressurized heat pipe vacuum tube rooftop solar split solar water heater

5.632,64 €

Aggiungi alla lista dei desideri
CONTROLLO SICURO GARANTITO
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
COD: 1005009255790426 Categoria: Tag: , Marchio:

Descrizione

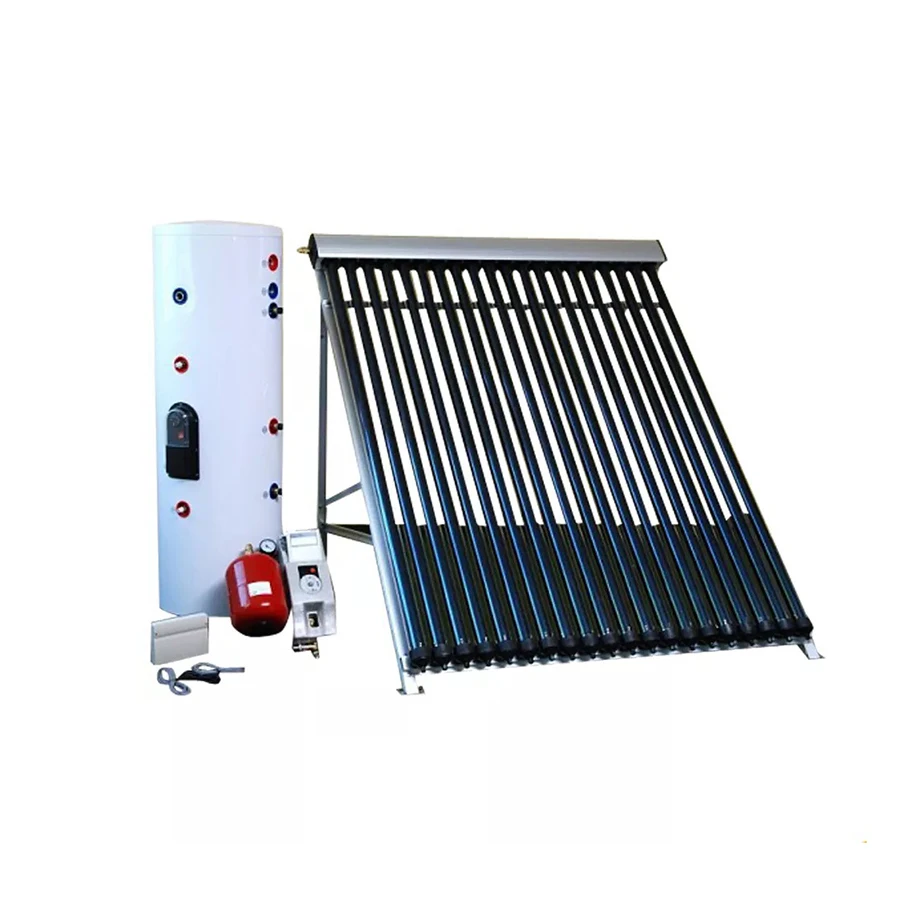

Giant intelligent pressurized heat pipe vacuum tube rooftop solar split solar water heater

Product Information
Material
Stainless Steel
Color
White
Type
Pressurized
Collector
Vacuum tube
Capacity
100L/150L/200L/260L/300L/400L/500L/1000L
Certificates
CE,CCC
MOQ
20pcs
Model
Tubes QTY
PCS
Absorber Area
Wasp
Capacity
Liters
Loading Quantity Sets(20FT/40HQ)
JN-100-10
10
1.29
100
41/100
JN-150-15
15
1.93
150
35/85
JN-200-20
20
2.58
200
27/67
JN-260-25
25
3.23
260
22/54
JN-300-30
30
3.89
300
20/50
JN-400-40
40
5.16
400
16/40
JN-500-50
50
6.45
500
12/29
JN-100-120
100
15.48
1000
7/17
Inner Tank

SUS304-2B

100L-200L, 1.2mm thickness, 200L-380L,1.5mm thickness,
400L-500L, 2.0mm thickness, 1000L, 2,5mm thickness
Outer Tank
Colored powder coating steel with thickness of 0.4mm
Insulation layer
55mm thick high density polyurethane
Vacuum Tube
Three layer 58x1800mm, absorb efficency 94% to 97%.
Sollor Collector
Outer and bracket material: Aluminium alloy 3.0mm thick
Collector Insulating Layer
Rock Wool
Heat Pipe
14*0.6mm thick with heat transfer oil
Warranty
5 Years
Delivery TIme
Delivery time within 10 days after receiving deposit
Payment Term
TT/LC
Packing
Standard Export Packing
Other free services
Free installation manual in english,put logo on tank, cartons, and tubes
MOQ
1* 20FT container

System introduction

System advantage:

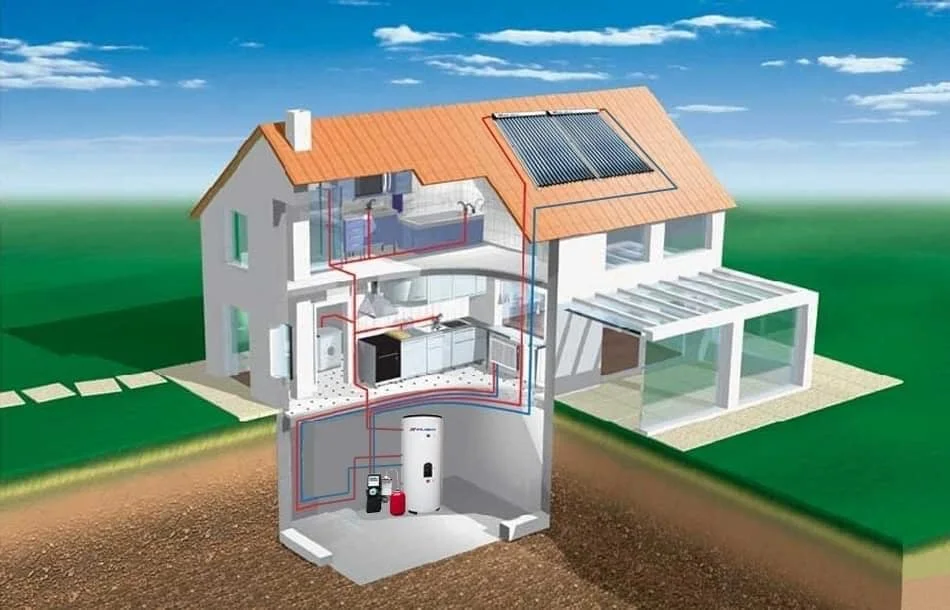

(1) The system separates the collector and the heat storage tank.Perfect combination with buildings.

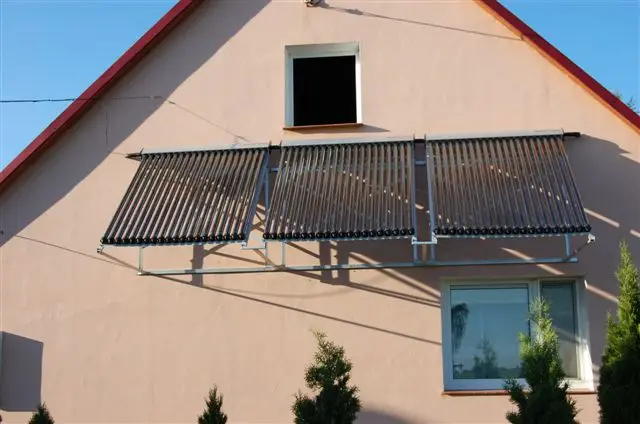

(2) The collector can be installation on rooftop and wall or balcony.
(3) The collectors were used industry-leading technology to produce hot start fast, high efficiency, eliminate leakage risk.
(4) Inner tank:SUS304/316 stainless steel or enamel tank,high pressure, Corrosion resistance strong, health and safety.
(5) System pressure, closed loop, indirect heat transfer, water quality assurance, supply pressure.
(6) With customer requirements, structural condition of the house design hot water and heating.
(7) A set of systems, utilities metering, tenants can live with no billing disputes with the use, easy to manage.
System type:
Split flat plate water heater system, split heat pipe water heater system, U-type split water heater system ,split vacuum tube water heater system.

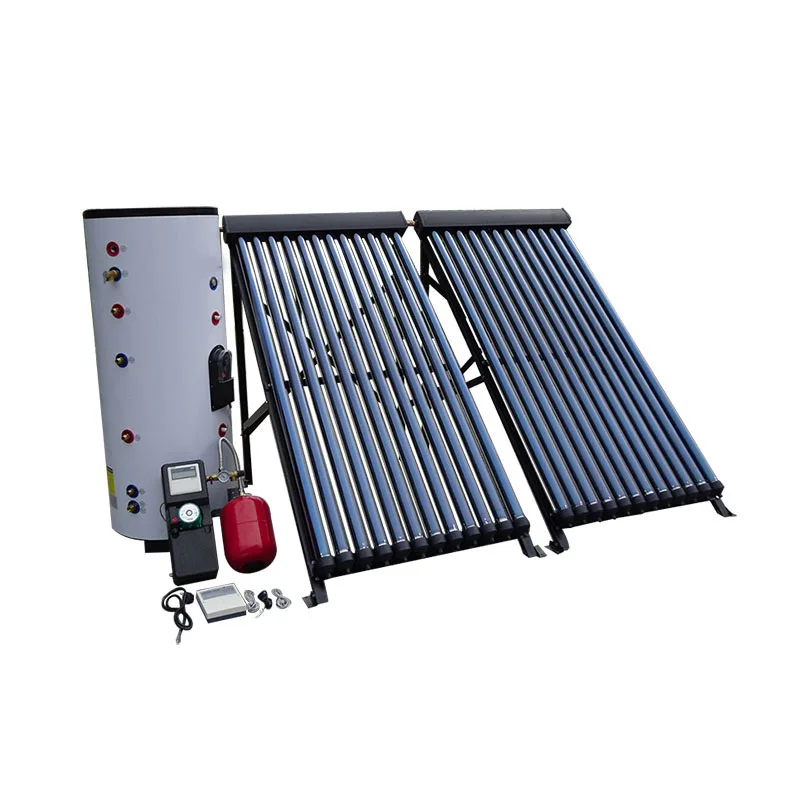

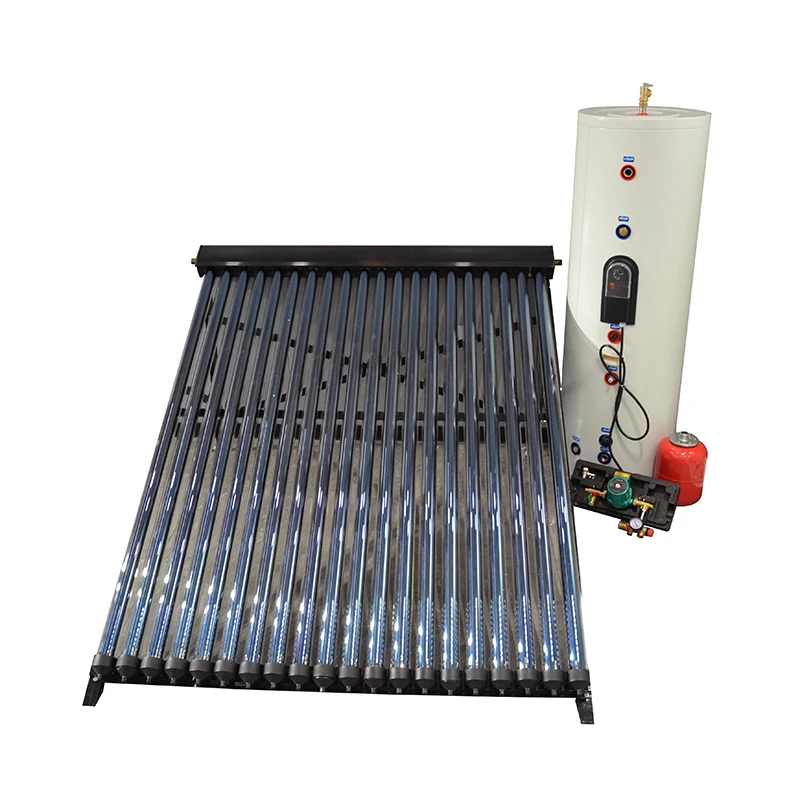

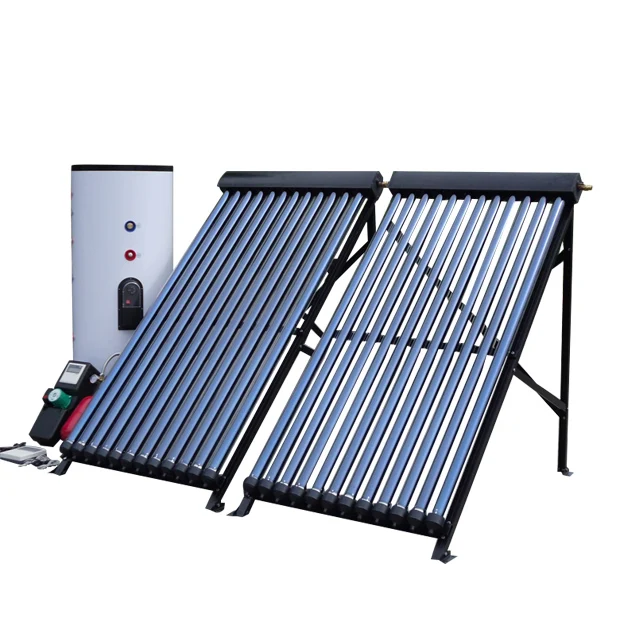

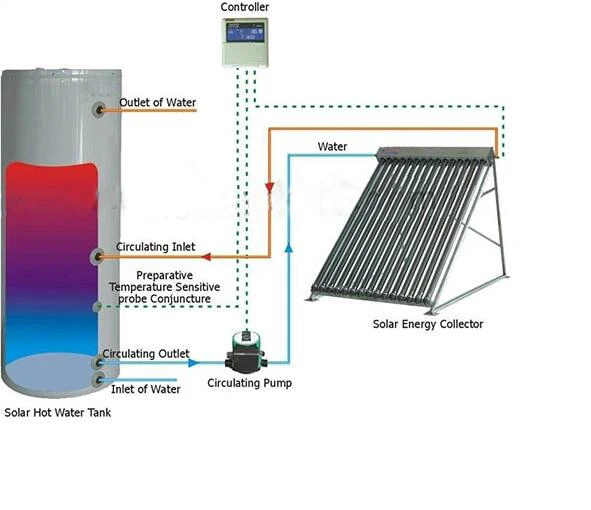

system configuration:
Collector (plate type, heat pipe type), pressurized thermal storage tank, controller, media circulation pipe, pipe fittings,
circulating medium, electric heating, leakage protection plug, magnesium rod, pressure relief valves, insulation cotton.

System Using:
It can be used in villas, high-rise apartments, multi-storey apartment for heating and hot water supply.

Informazioni aggiuntive

Color

Silver, White

Specification

AU, EU, UK, us
