Sistema di riscaldamento dell’acqua solare pressurizzato da 250 litri con tubo di aspirazione dello scambiatore a serpentina in rame per uso domestico o commerciale
6.625,67 €
Descrizione

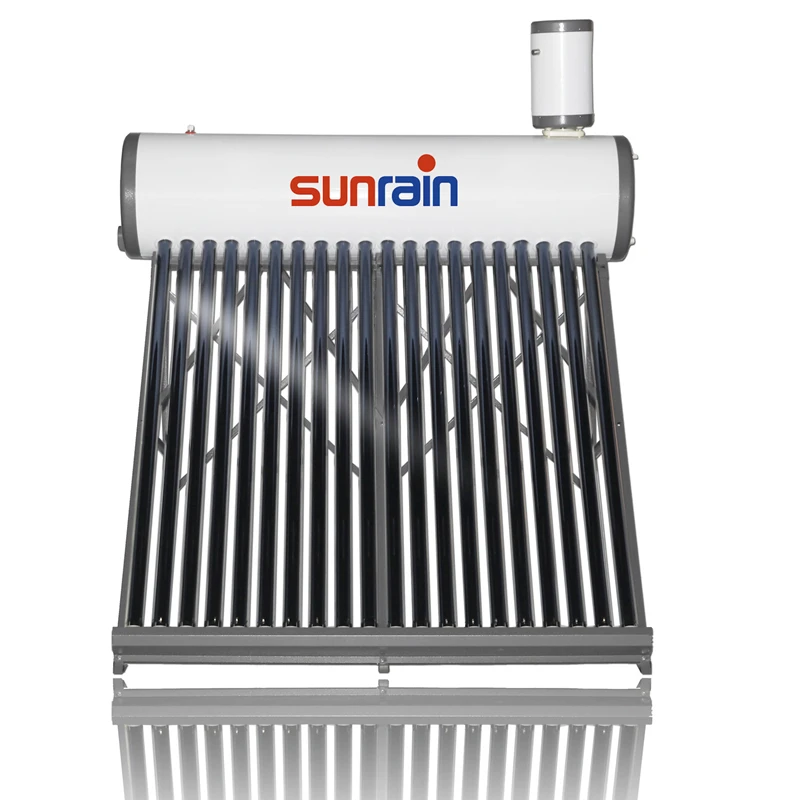

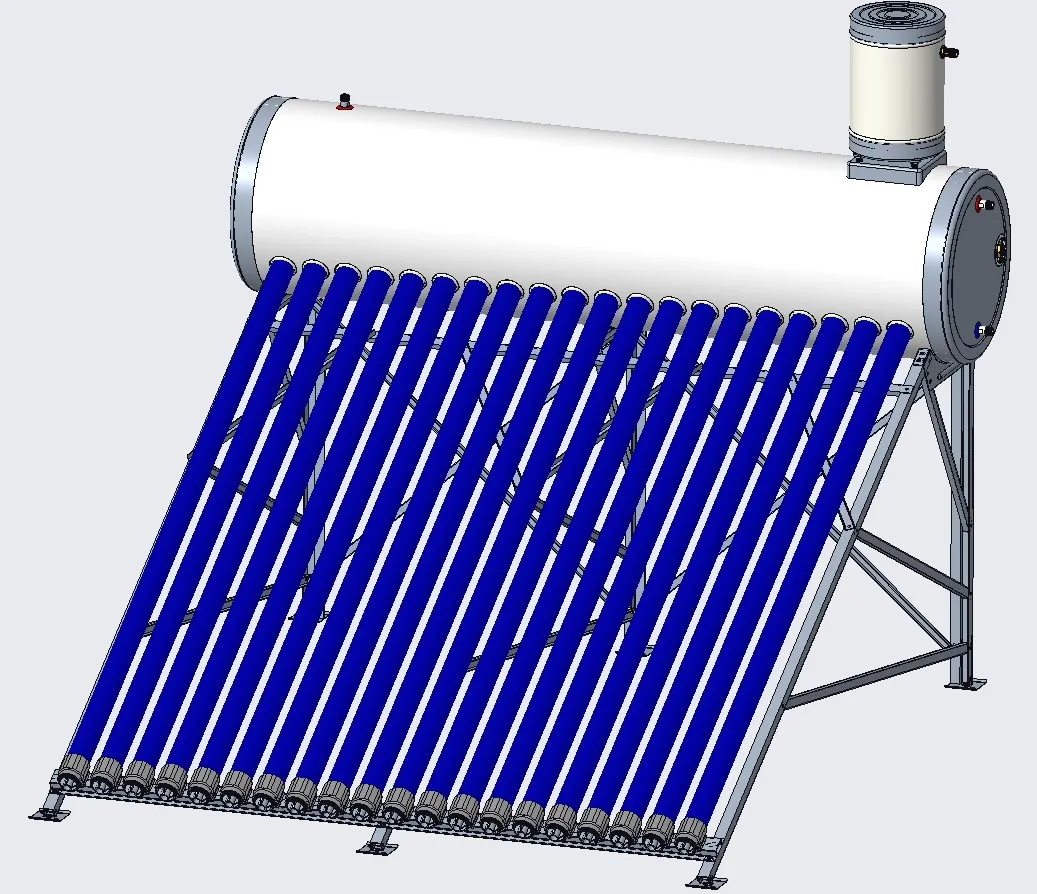

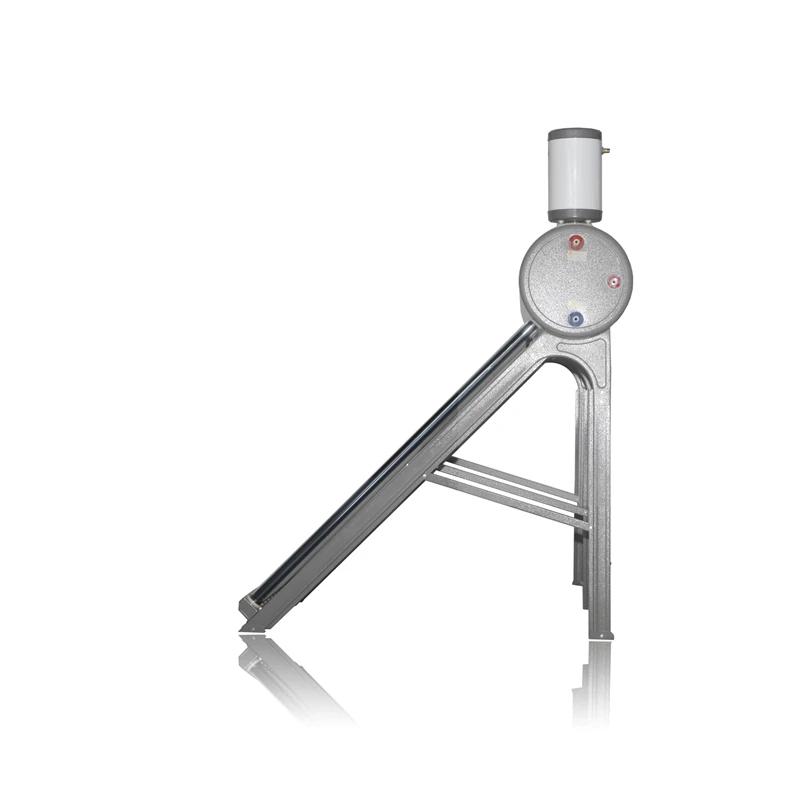

250L Pressurized Solar Water Heater System with Copper Coil Exchanger Vacuum Tube for Home or Commercial
1). Top quality product with 3 years warranty.
2). Solar water heater can supply enough hot water for 6 to 8 people.
3). Simple structure, simple for installation, simple for maintenance.
4). Test pressure 10 Bar, operating pressure 6 Bar, water heater can be connected directed with city water.
5). Optional electric heater back up: 1.5KW.
6). Solar water heater inlet and outlet size: 1/2inch.
7). Inner tank material: SUS304- 0.5mm thickness.
8). Branding: Sunrain or OEM.
3). Simple structure, simple for installation, simple for maintenance.
4). Test pressure 10 Bar, operating pressure 6 Bar, water heater can be connected directed with city water.
5). Optional electric heater back up: 1.5KW.
6). Solar water heater inlet and outlet size: 1/2inch.
7). Inner tank material: SUS304- 0.5mm thickness.
8). Branding: Sunrain or OEM.

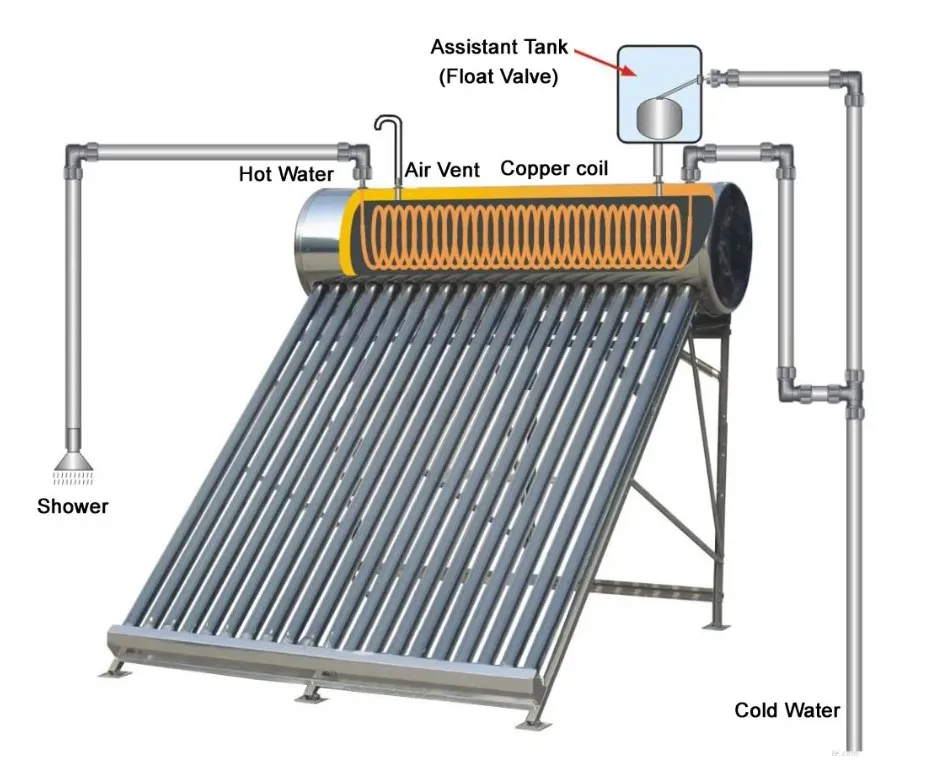

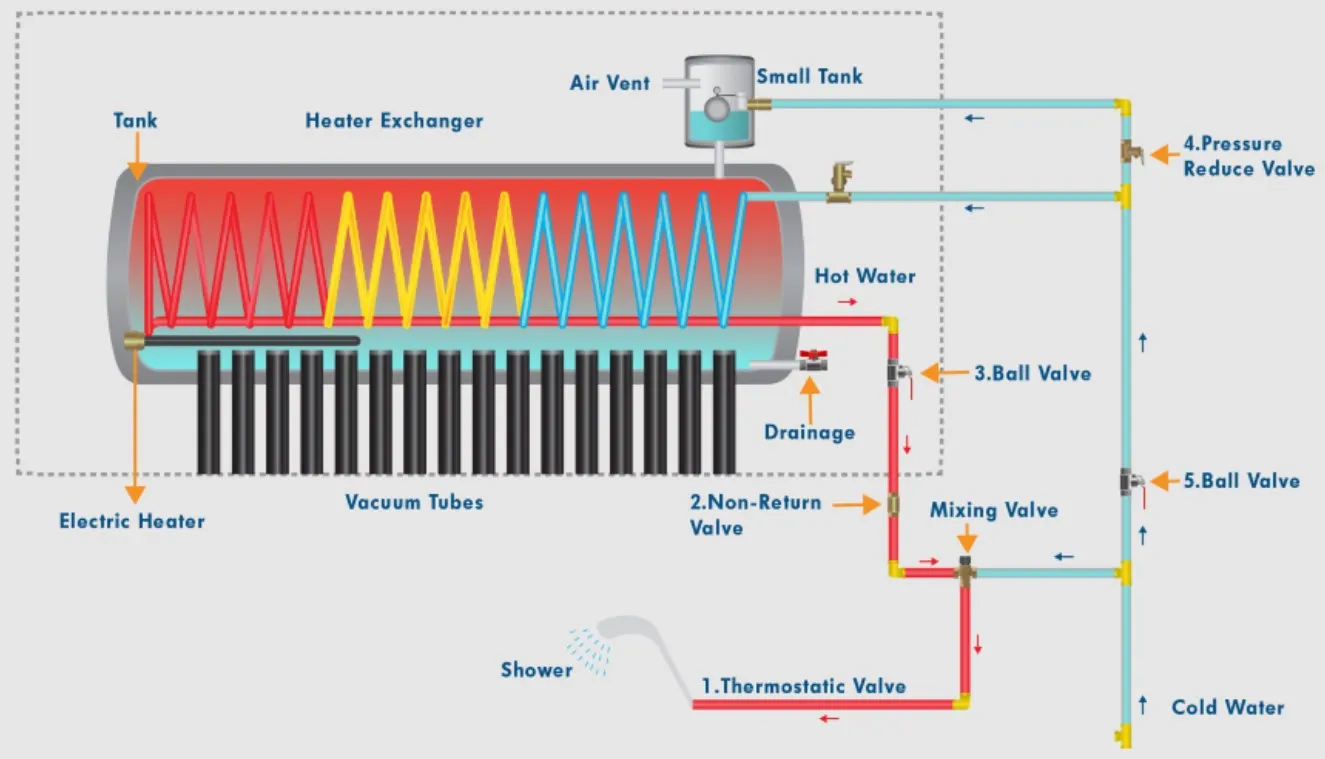

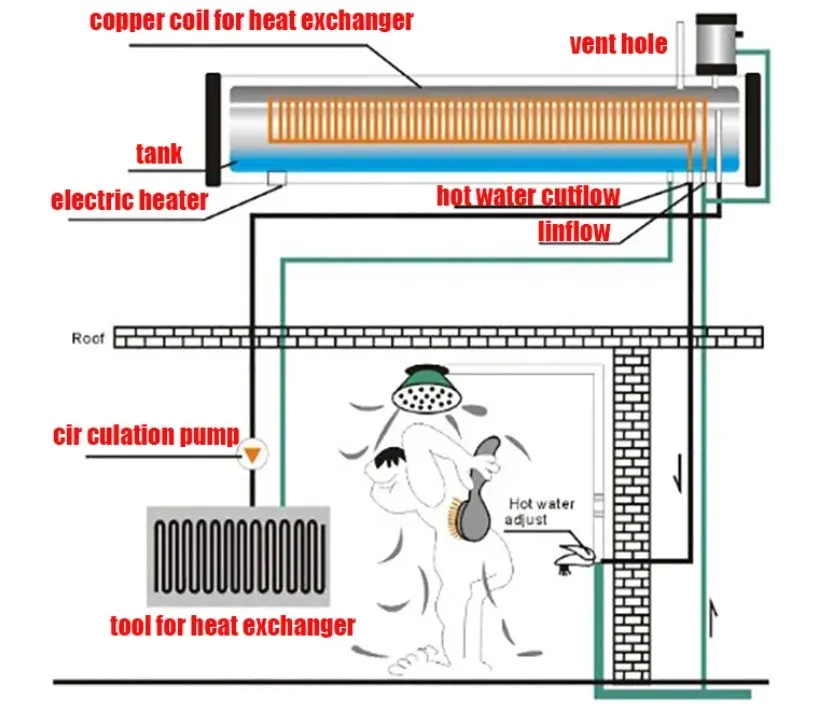

Working principle
Working principle
Solar water heating systems, or solar thermal systems, use energy from the sun to warm water for storage in a hot water cylinder or thermal store. Water in the heat exchangers will be heated quickly.
Specification
Model: | TZ58/1800-15E | TZ58/1800-20E | TZ58/1800-25E | TZ58/1800-30E | |||
Volume: | 150L | 200L | 250L | 300L | |||
Material of inner tank: | 0.5mm SUS304 | ||||||
Material of insulation: | 40mm Polyurethane | ||||||
Electric resistance: | 1.5KW | ||||||
Copper coil: | φ12mm | ||||||
Working pressure: | ≤0.6MPa | ||||||
Max testing pressure: | 1.0MPa | ||||||
Size of pipe connection: | G 1/2″ | ||||||
Angle of frame: | 23°/30°/45° | ||||||
20GP/40GP/40HC Loading Qty: | 36/75/89 | 28/59/70 | 23/49/58 | 20/42/49 | |||
Wide Application
We can supply complete plumbing fittings for you installation, 3D design, easy for installation.

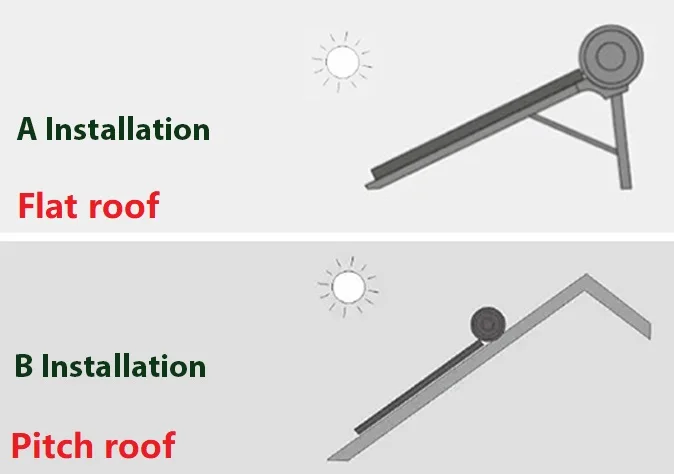

The solar water heater can be installed for both flat roof and pitch roof:
Informazioni aggiuntive
| Ships From | CHINA |
|---|
