High Efficiency Factory Low Price Wind Energy System Generator off Grid System Complete Kit Wind Turbine



ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine

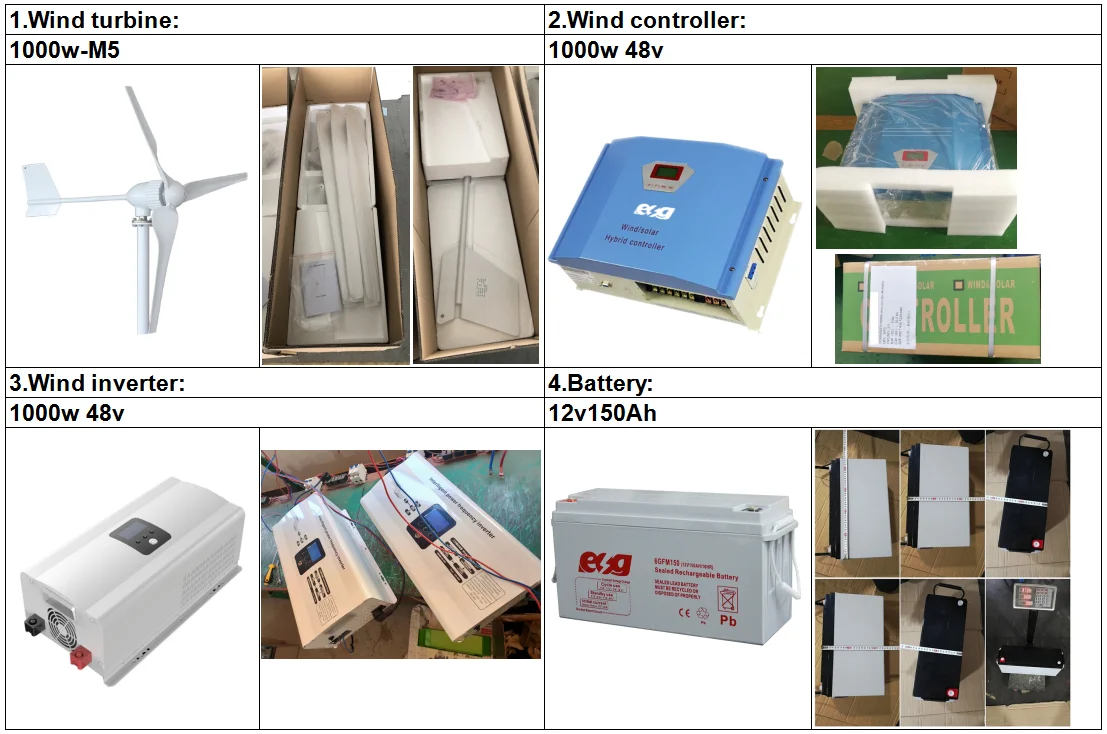

Packing list

(Average daily energy storage 3-5kw/h)

ItemModelQuantity
1Wind turbine(1kw-M5)1
2Wind controller1
3Inverter1
4Battery(12v100Ah)2
5Tower 6m(3m*2)1

Technical parameter

ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine

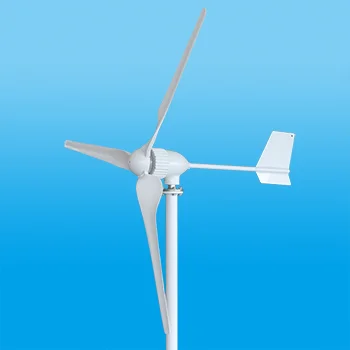

Wind turbine 1kw

ModelES-1000-M5ES-1000-L
Rated power1000W1000W
Maximum power1050W1500w
Rated voltage48V48V
Start-up wind speed2.5m/s3m/s
Rated wind speed12.5m/s10m/s
Survival wind speed40m/s45m/s
Top net weight30kg37kg
Wheel diameter2.4m2.8m
Number of blades33
Blades materialNylon fiberNylon fiber/reinforced glass fiber
GeneratorThree phase permanent magnet ac synchronous generatorThree phase permanent magnet ac synchronous generator
MagnetNdFeBNdFeB
Generator caseCasting aluminum alloyCasting aluminum alloy
Control systemElectromagnet/wind wheel yawElectromagnet/wind wheel yaw
Speed regulationAutomatically adjust windward directionTail furling
Working temperature-40鈩�-80鈩�-40鈩�-80鈩�
Suggest tower height (m)6m(3m*2) 6m(3m*2)

Wind Controller 1kw

Product ModelWWS10-24-N  WWS10-48-N
Rated Battery Voltage24V48V
Rated Wind Turbine Input Power1kw1kw
Maximum Wind Turbine Input Power1.5kw1.5kw
Wind Turbine Brake Current42A21A
Rated Solar Input Power300w300w
Floating Charging Voltage29V58V
Display ModeLCD
Quiescent Current≤20mA
Ambient Temperature & Humidity-20~+55鈩�/35~85%RH(Without Condensation)
Communication Mode (Optional)RS232,RS485,RJ45,GPRS (optional)
Temperature Compensation Function (Optional) -4mV/鈩�/2V ,–35鈩�–+80鈩� ,Precision:±1鈩�

Dimension

(L x W x H)

440×425×170mm
Net Weight11kg
 Data for Micro Current Charge Function
Wind Turbine Start Charge Voltage12V24V

Dimension

(L x W x H)

Controller Box: 440×300×170mmDumpload Box: 300×190×120mm
Dumpload Box: 410×270×175mmController: 7.5kg ; Dumpload Box: 3.5kg
Net Weight
 Data for Low Voltage Charge Function
Wind Turbine Start Charge Voltage4V8V
Input Admittance Value10/1510/60

Dimension

(L x W x H)

Controller Box: 440×305×170mmController Box: 440×305×170mm
Dumpload Box: 410×270×175mmDumpload Box: 300×190×120mm
Net Weight

Controller: 7.5kg ;

Dumpload Box: 7kg

Controller: 7.5kg ;

Dumpload Box: 3.5kg

In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement.
 ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbineInverterModelES-1210ES-1220
Rated power1000W2000W
Peak Power3000W6000W
Battery Voltage12VDC/24VDC/48VDC
Working ModelPV(Phtovoltaic priority)/AC( AC priority) optional
Machine size520*280*180mm
Net weight12KG17KG
Input
Mains input voltage range160-280VAC
Mains input frequency range45Hz-65Hz
DC input voltage range10.5VDC-15VDC (Single cell voltage)
Output
Inverter output efficiencyInverter efficiency≈90%
Inverter output voltage110V/120V/220V230V/240VAC±1% Battery mode
Inverter output frequency50H2/60Hz
Inverter output waveformPure sine wave
Mains output voltage range110V/120V/220V/230V/240VAC±10%
Mains output frequency rangeIntelligent recognition
Protect
Battery overvoltage protection16.5v machine alarm,17.5 v shutdown protection, below15.5v automatic startup
Overload alarmAlarm at 110% load, shutdown at 120% load for one minute, and shutdown at 150% load for three seconds. Automatic startup when load islower than 98%
Other protectionUnder voltage protection, over voltage protection, short circuitprotection, over input protection, over input protectionover temperature protection,ect
LCD displaymains mode≥86%
 UPS priority DCMains priority, inverter backup
 UPS priority ACInverter priority, mains backup
Battery compatibilityLead acid battery/ lithium battery (optional)
 Charging modeThree stage charging: constant current, constant voltage and floating charging
Intelligent fan control Implement intelligent speed regulation according to the internal temperature of the machine
 Switching time<3ms
 Working environment temperature/ humidity Intelligent recognition
Pure copper ring transformer  Standard
AVR voltage stabilizing functionStandard
 ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine Battery

ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine Guyed cable tower

WITH LOCKING POLE 6 METER

 For homes winESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine

advantage

ESG High efficiency factory low price wind generator off grid system complete kit 10kw wind turbine
vGreen energy, energy saving and environmental protection
vStable and continuous power supply
vRainy days work as usual
vEasy installation
vSuitable for many complex environments

Informazioni aggiuntive

Color

Hybrid -500W, Hybrid -800w, Off-Grid -500W, Off-Grid -800w
