In offerta!

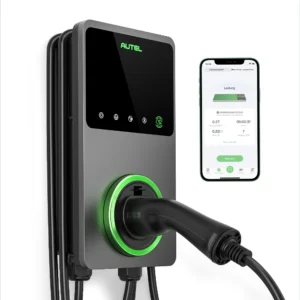

New Energy Vehicle Parts & Accessories Ev Fast Charger Type2 Wallbox Ev Charging Station Ev Car Charger Electric Vehicle

Name: | | Nome Negozio
Brand: variable
SKU: 1005008966005566
Price: 5966.57 EUR
Availability: InStock

Il prezzo originale era: 6.858,13 €.Il prezzo attuale è: 5.966,57 €.

CONTROLLO SICURO GARANTITO

Descrizione

Specification

Charging mode	Mode 3, type 2
Charging power	7kW/11kW/22kW
Rated Current	32A
Rated Frequency	50Hz
Input/output voltage	230V±15%, 1P+N+PE
Network type	TT, TN
RCD	AC 30mA, DC 6mA
RCBO	Extenal type A RCBO if specially required
Protection	Overcurrent, overvoltage, undervoltage
General characteristics
Cable length	5m/7.5m (optional)

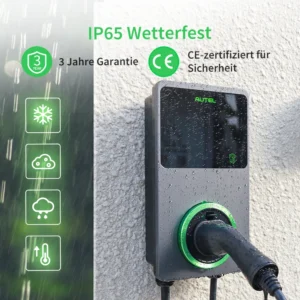

IP and IK rating	Body IP65, Socket IP54; IK08

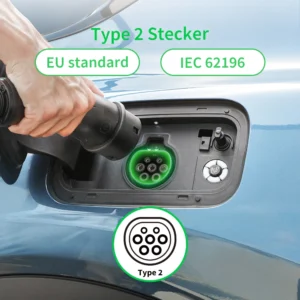

Output interface	IEC 62196-2 Type 2 plug IEC 62196-2 Socket or Socket with shutter (optional)
Operating altitude	2000m
Operating temperature range	-40+55
Storage temperature range	-40+85
Mounting	Wall or floor using a pedestal
Weight	3600g
Dimensions (H×W×D)	336×187×85mm
User interface
Status indication	LED/APP/LCD (optional)
User interface	Autel Charger APP; MaxiCharge Service Software
Connectivity	4G Optional, Bluetooth, Wi-Fi, Ethernet
Communication protocols	OCPP 1.6J
User authentification	APP, RFID card, QR code (available with LCD)
Software update
Software update	OTA updates via web portal
Certification and standards
Safety standards	IEC/EN 61851-1, EN 62311, EN 62479, IEC/EN 62955
Certification	CE (TUV)
Warranty	36 months

Packing & Delivery

Color Name	7KW
