New Energy Vehicle Parts & Accessories Ac Type2 32a 7kw Wholesale Ac Ev Charger 7kw 32a Type 2 Electric Car Charging Station

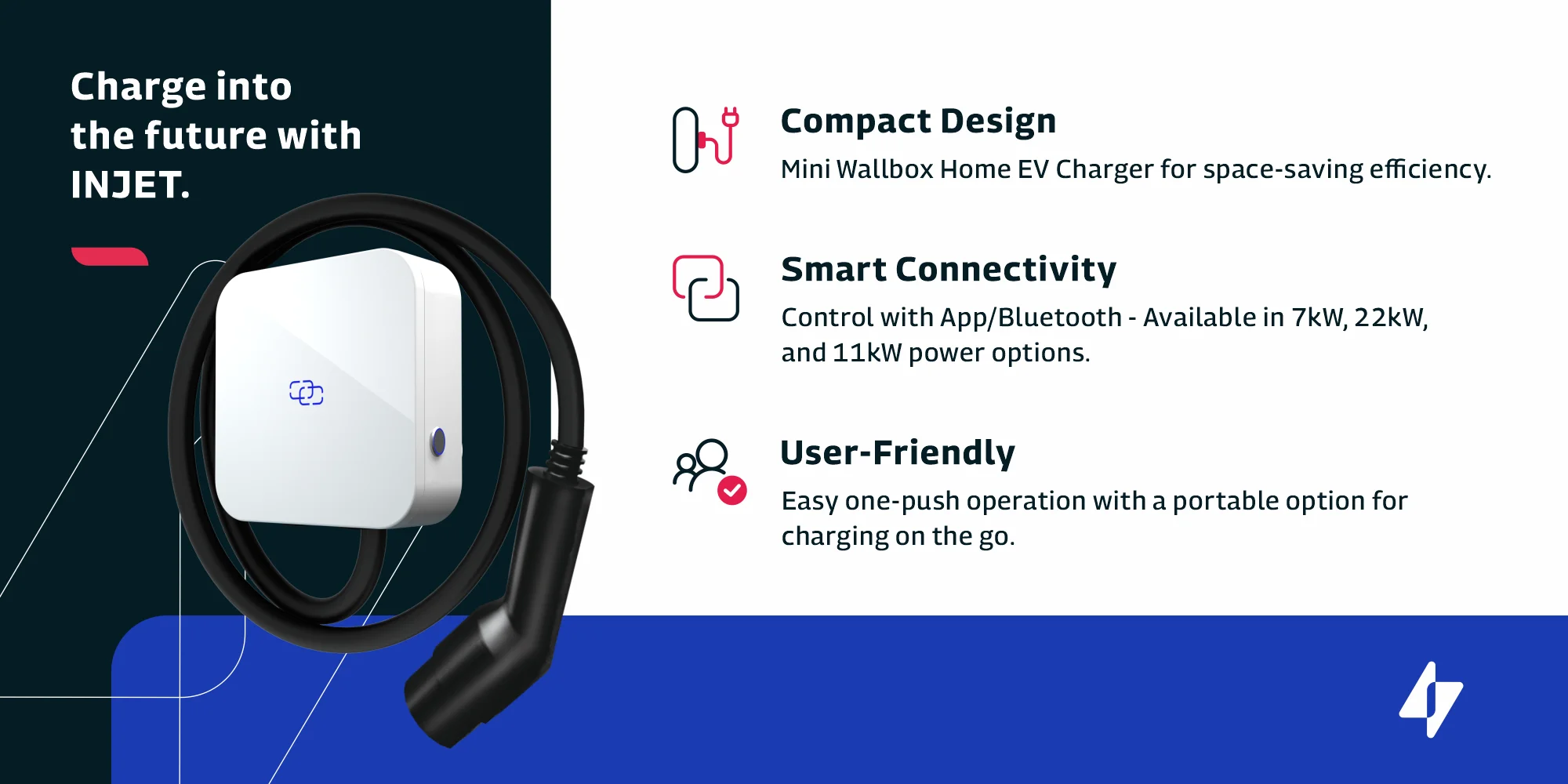

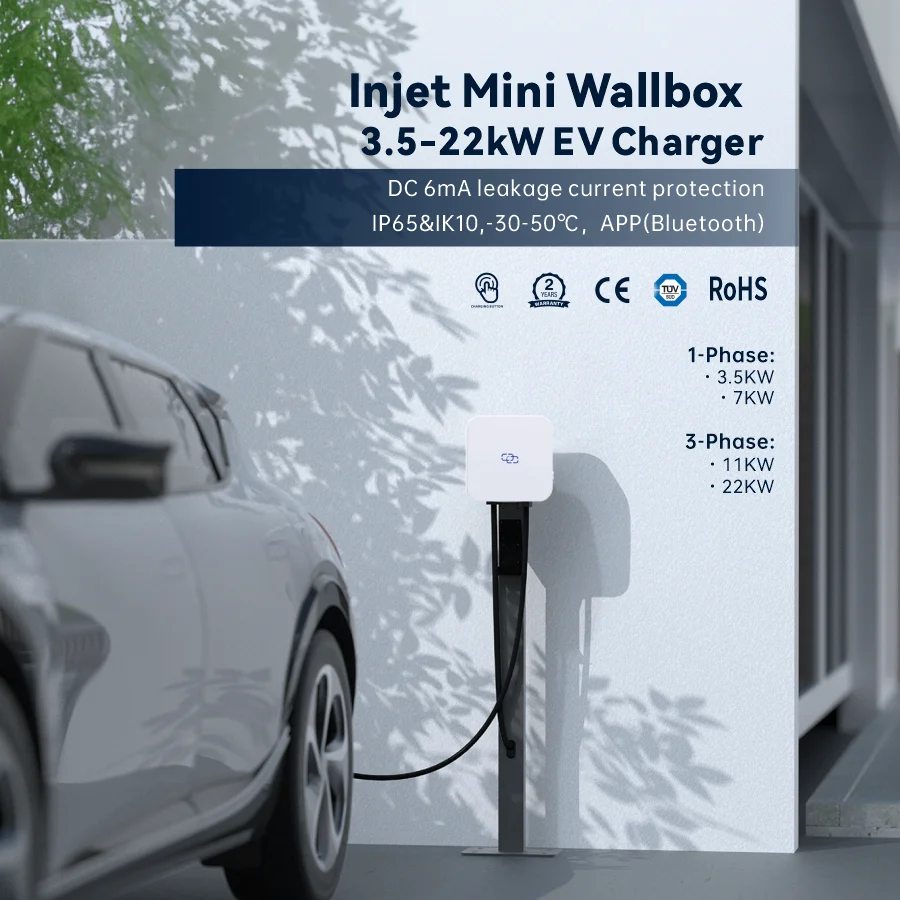

Injet Mini Wallbox – Home EV Charging Solution – IP65 Type 2 7KW 11KW 22KW 32A Smart EV Charger

Home charging is the most convenient and economical way of EV charging.

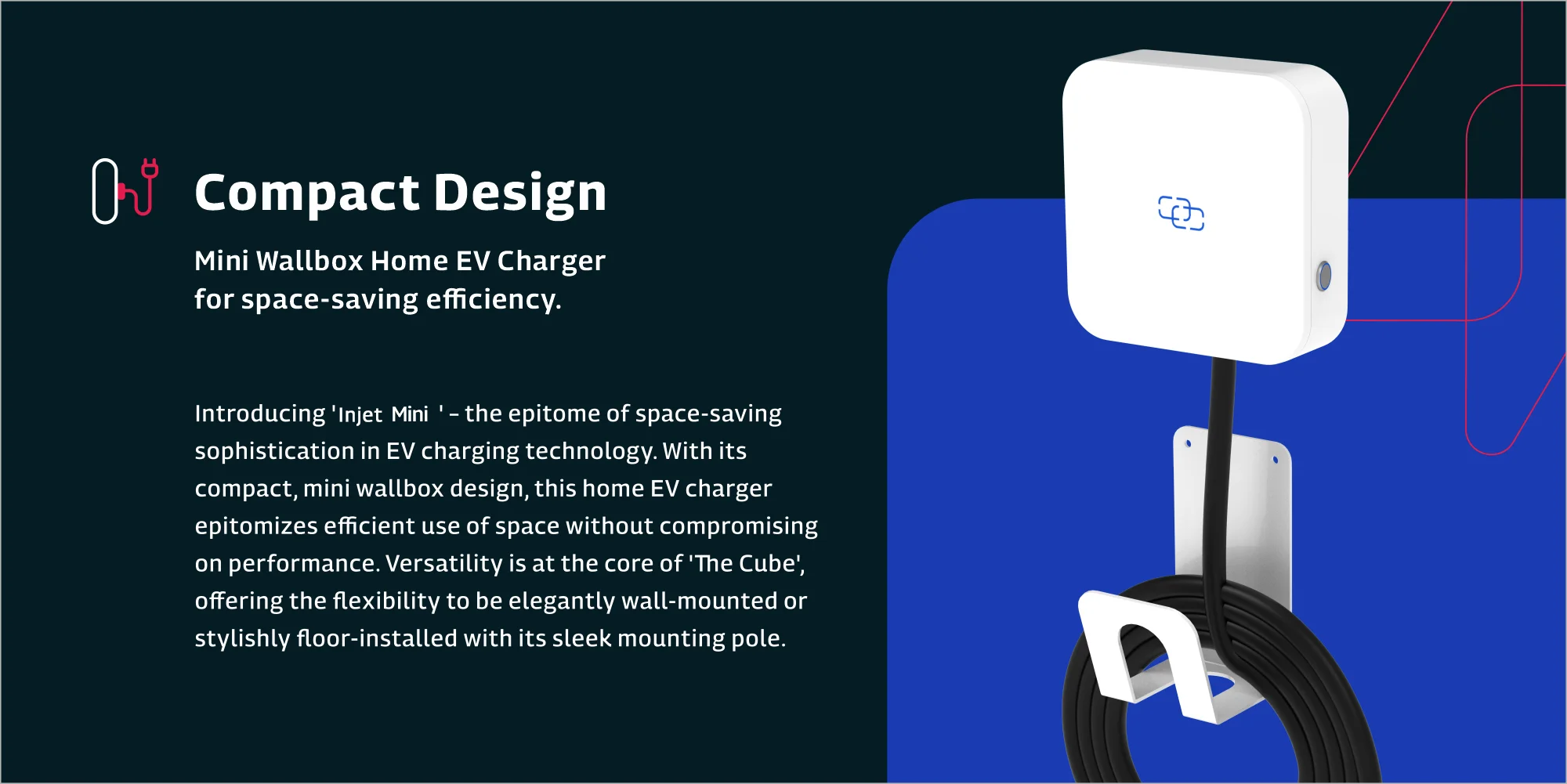

Injet Mini adapts to all electric vehicles, power supplies and mains. It’s a powerful home charging solution which Max. power output reach 22KW, three times faster than in a standard electrical outlet. We can all be a little less hassle, Injet Mini is an easy way to recharge your EV at night and make it ready for the day time. It is compact enough to fit in any home place, meanwhile easy to install and use.With the smart APP, you can easily schedule your home charging and adjust the current and power to your need. TUV-CE approved, strictly comply with the health and safety standards.

Product Features

Product Paramenters

General Information
Standard	IEC Standard (EU Version/GBT Version)
Charging Connector Type	IEC 62196-2 (Type 2/Mennekes) Plug/GB/T20234.2 Type 2
Certificates	CE, ROHS, REACH,LVD, RED
Rated AC Voltage Power Input	220V ±10%	220V ±10%	380V ±10%	380V ±10%
Phase Number	1 Phase	1 Phase	3 Phase	3 Phase
Rated AC Power Output	3.5kw/16amp	7kw/32amp	11kw/16amp	22kw/32amp
Current Adjustable	6a ~ 16a	6a ~ 32a	6a ~ 16a	6a ~ 32a
EVSE Charging Modes	Mode 3 Charging

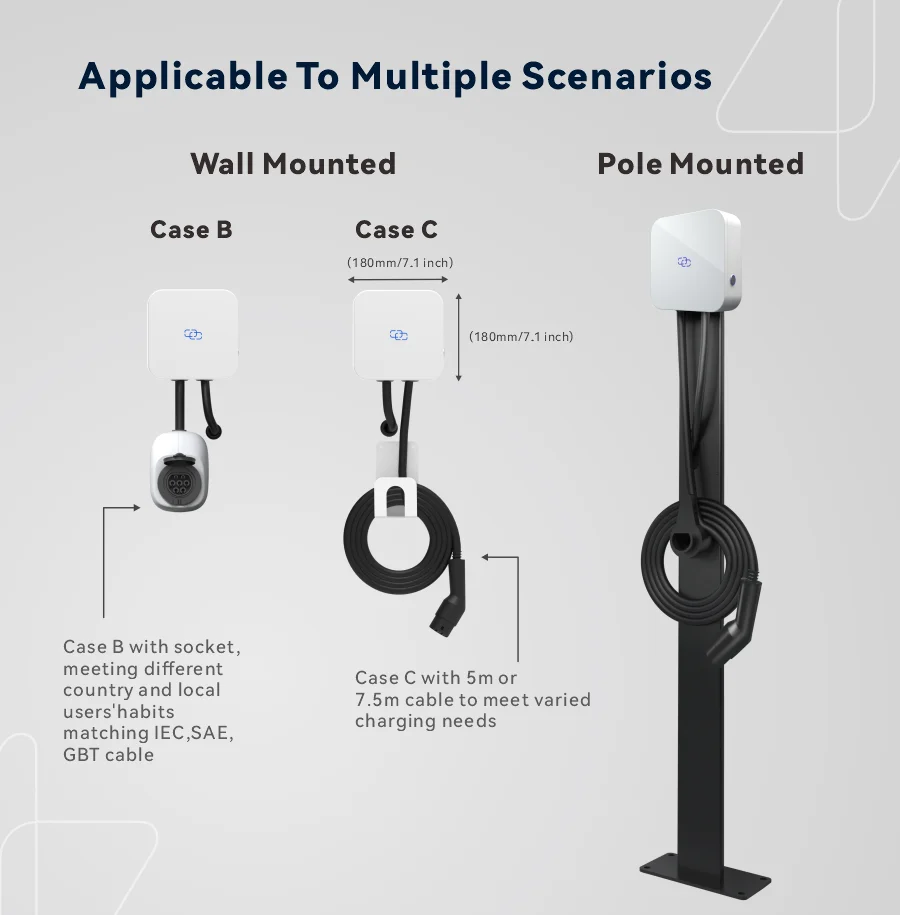

EVSE Connecting Type	Case C, Case B available (Tethered Version with Cables or Untethered Version without Cables)
User Interface & Control

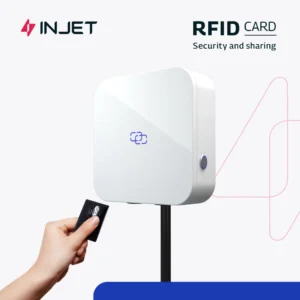

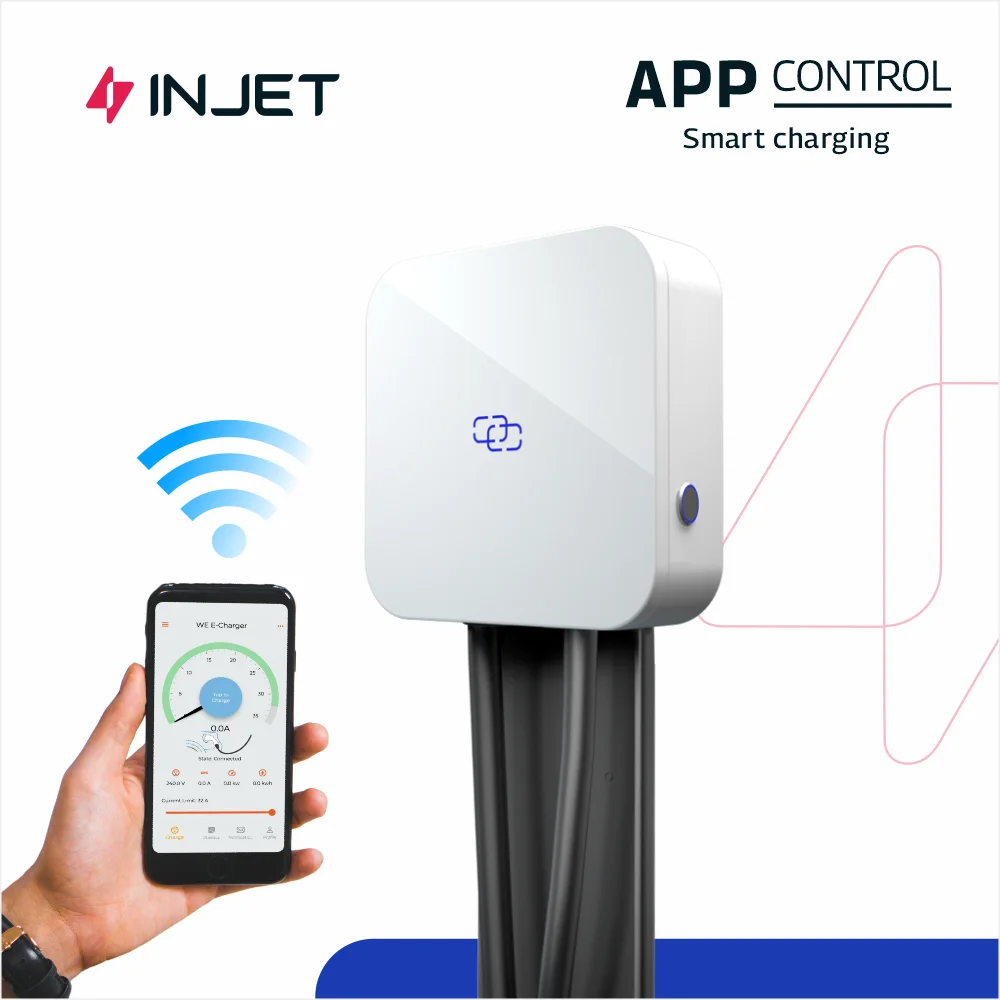

Charging Control	1. Plug in and out for start and stop charging 2. Plug in, swipe RFID card to start and stop charging, then plug out 3. App control (bluetooth)
Charging Data Monitoring	Power consumption, current, voltage, miles, cost and schedule charging times etc.
Operational Ratings
IP Ratings	CE certified IP65, IK10 suitable for indoor and outdoor application
Storage Temperature	-40 to 75鈩� �-40 to 167�) ambient
Operating Temperature	-30 to 55� �-22 to 131�) ambient
Operating Humidity	Up to 95% non-condensing
Altitude	≤2000m

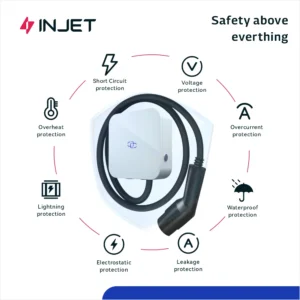

Protection	Over Voltage Protection Over Load Protection Earth Leakage Protection(CCID 20) Over-temp Protection Under Voltage Protection Short Circuit Protection Ground Protection Surge Protection
Wallbox Mechanical
Dimension (H x W x D, mm)	18018065
Weight	less than 6kg
Charging Cable Length	5m �7.5m, or Customize Length
Enclosure Material	PC
