EVSE Car Charger IEC 62196 Type 2 7kw Car EV Charger 16A 32A 22kw EV Charger Wallbox Charging Station 11kW

CONTROLLO SICURO GARANTITO

Descrizione

EVSE Car Charger IEC 62196 Type 2 7kw Car EV Charger 16A 32A 22kw EV Charger Wallbox Charging Station 11kW

PRODUCT PARAMETERS

Power Specification
AC Power Input Rating	SAE Standard		IEC Standard
		AC Level 2		1-Phase	3-Phase
		240V		220V ± 15%	380V ± 15%
AC Power Output Rating	3.5kW/16A		3.5kW/16A	11kW/16A
		7kW/32A		7kW/32A	22kW/32A
		10kW/40A		N/A	43kW/63A
Rated Frequency	50/60Hz		50/60Hz	50/60Hz
Connector Type	SAE J1772 (Type 1)		IEC 62196-2 (Type 2)
User Interface & Control
Charging Control	Plug and Play, RFID Card or App
Display Screen	4.3-inch LCD Screen
Voice Prompt (Optional)	Voice guide of the charging process in English
Indicators	4 LED indicators-Power/Connect/Charging/Fault
External Communication	LAN (RJ-45) and Wi-Fi
OCPP Protocol (Optional)	1.6 or 2.0.1
Environmental
Storage Temperature	-40 to 75鈩� 锛�-40 to 167鈩�) ambient
Operating Temperature	-30 to 55鈩� 锛�-22 to 131鈩�) ambient
Operating Humidity	Up to 95% non-condensing
Altitude	≤2000m
Protection
Protection Ratings	IP 65		RCD	Type A / Type B
Over Voltage Protection	Yes		Under Voltage Protection	Yes
Over Load Protection	Yes		Short Circuit Protection	Yes
Earth Leakage Protection	Yes		Ground Protection	Yes
Over-temp Protection	Yes		Surge Protection	Yes
Wallbox Mechanical
Dimension (H x W x D, mm)	410 x 260 x 164
Weight	1-phase锛�10kg; 3-phase锛�12kg
Charging Cable Length	5m or Customize Length
Enclosure Material	Front-Panel: Tempered Glass; Back-cover: Metal Plate

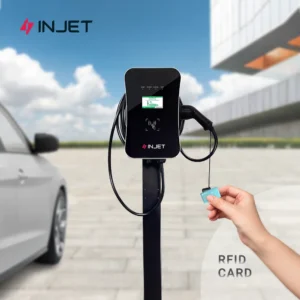

Mounting Pole Mechanical (Optional)
Dimension (H x W x D, mm)	1400 x 200 x 100
Weight	锛�8kg
Enclosure Material	Metal

Informazioni aggiuntive

Color	Black
