Name: MaxiCharger Home Ev Charger 7 kW Type2 - HPS Energy
Brand: simple
SKU: E00162
Price: 5594.24 EUR
Availability: InStock

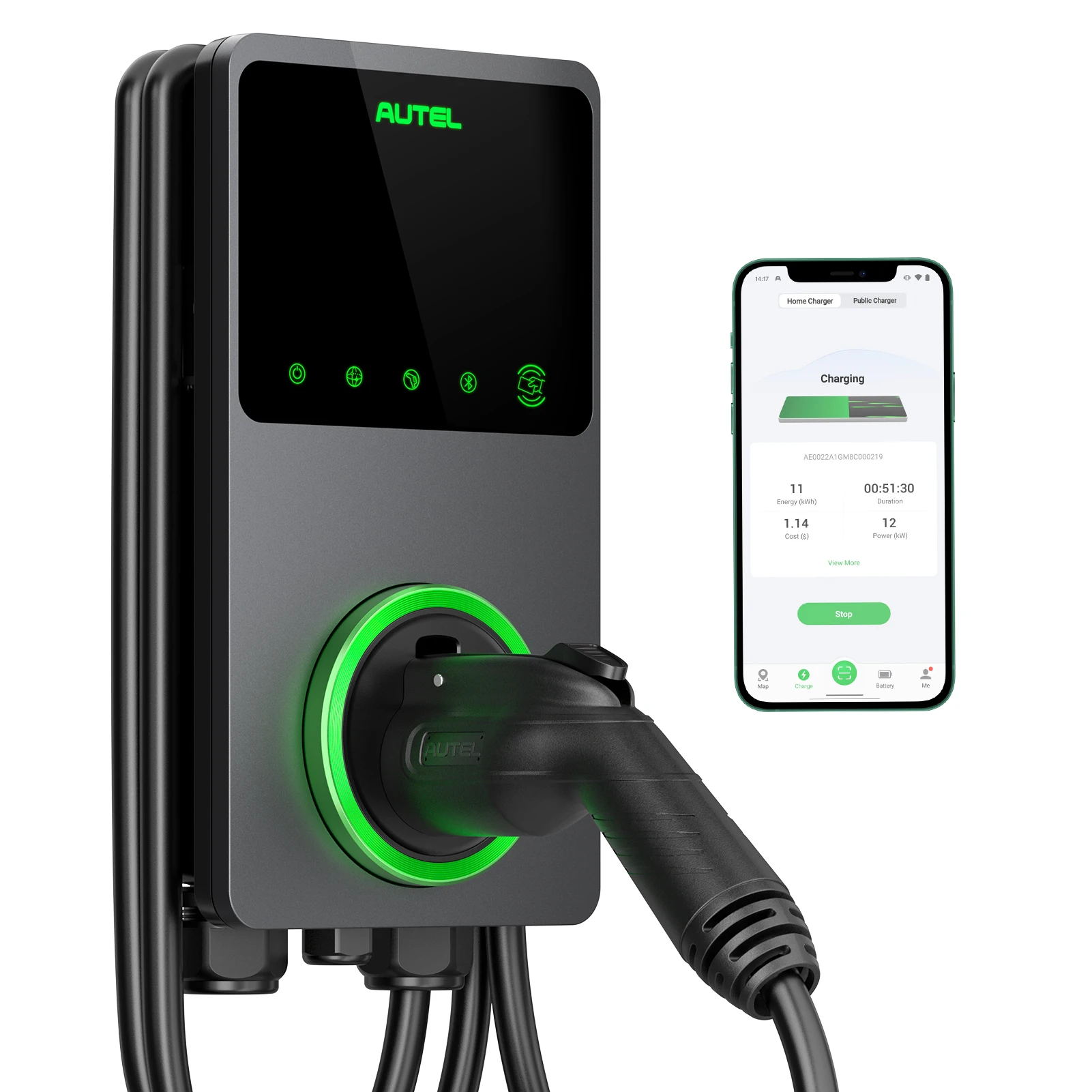

MaxiCharger Home Ev Charger 7 kW Type2

5.594,24 €

Technical Specifications

Product Information
Charging mode	Mode 3
Input/output power rating and current	Single phase up to 7.4kW/32A; Three phase up to 22kW/32A
Input/output voltage	230V±15%, single phase; 400V±15%, three phase; 50Hz (UK: 230V±10%, single phase; 400V±15%, three phase; 50Hz)
Network type	TT, TN
Connector type	IEC 62196 type 2 plug, 5m IEC 62196 type 2 socket or socket with shutter

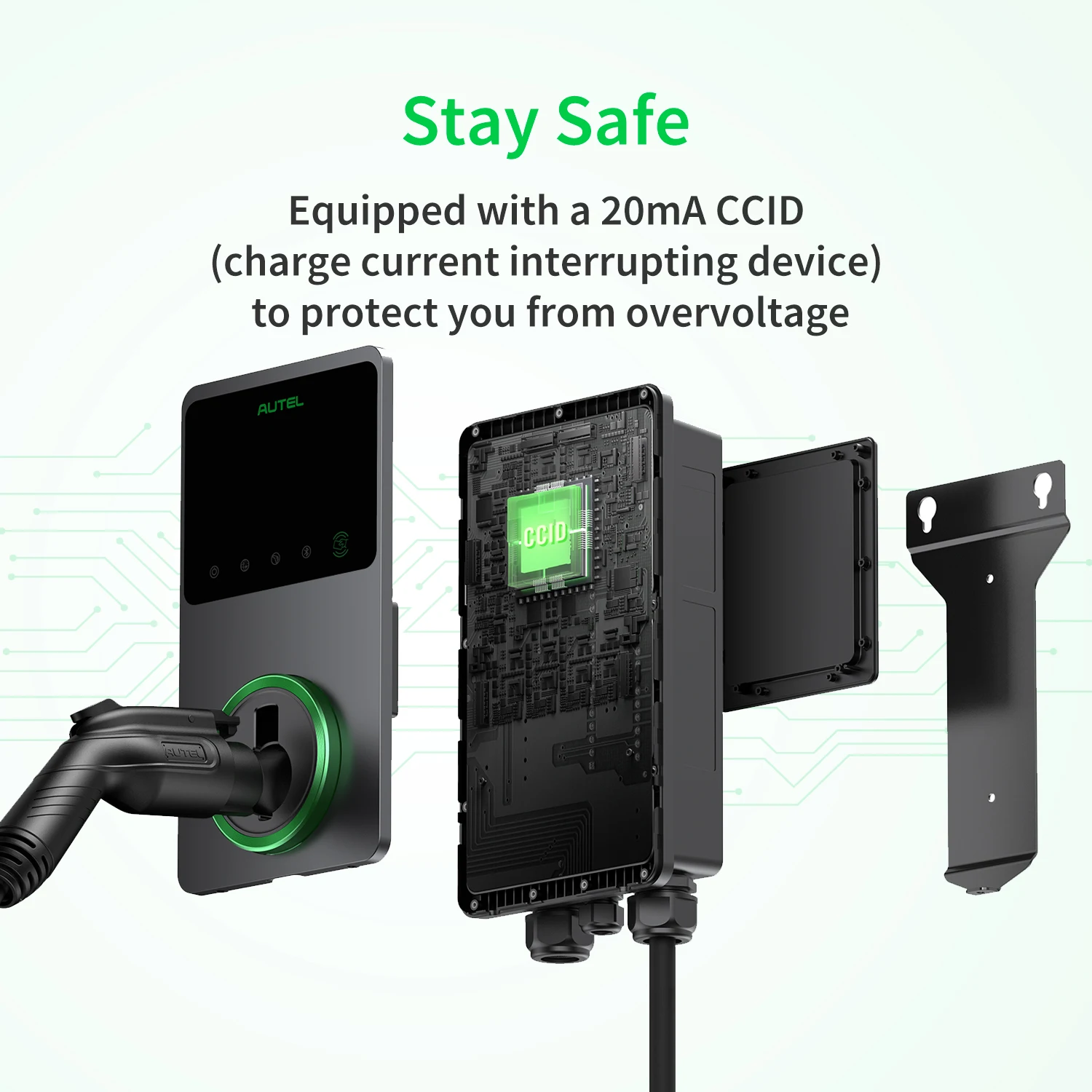

Residual current detection	AC 30mA + DC 6mA
Protection	Overcurrent, overvoltage, undervoltage, integrated surge protection, PME (UK)
Card reader (Optional)	ISO 15693, ISO 14443
Power measurement accuracy	+/- 1.0%; Build-in MID Certified meter (Only applicable to the products with LCD screen)
General Characteristics
IP and IK rating	IP65 (IP54 for socket version); IK10 (Screen: IK08)
Operating altitude	2000m
Operating temperature range	-40℃ ~ +55℃
Storage temperature range	-40℃ ~ +85℃
Mounting	Wall or floor using a pedestal
Dimensions (H×W×D)	336 × 187 × 85 mm
User Interface

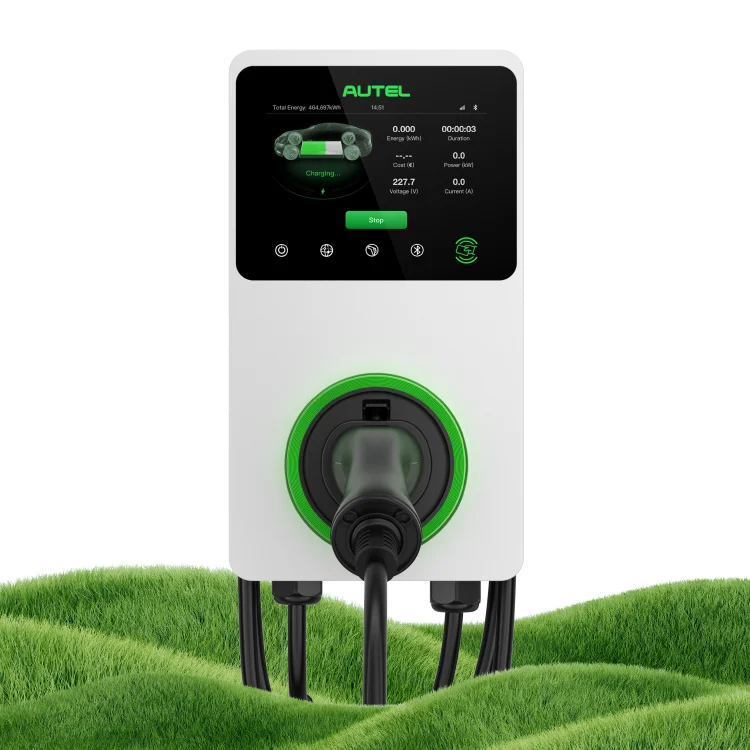

Status indication	LED / APP / Touch screen (Optional, 5 inch LCD, 800*480)

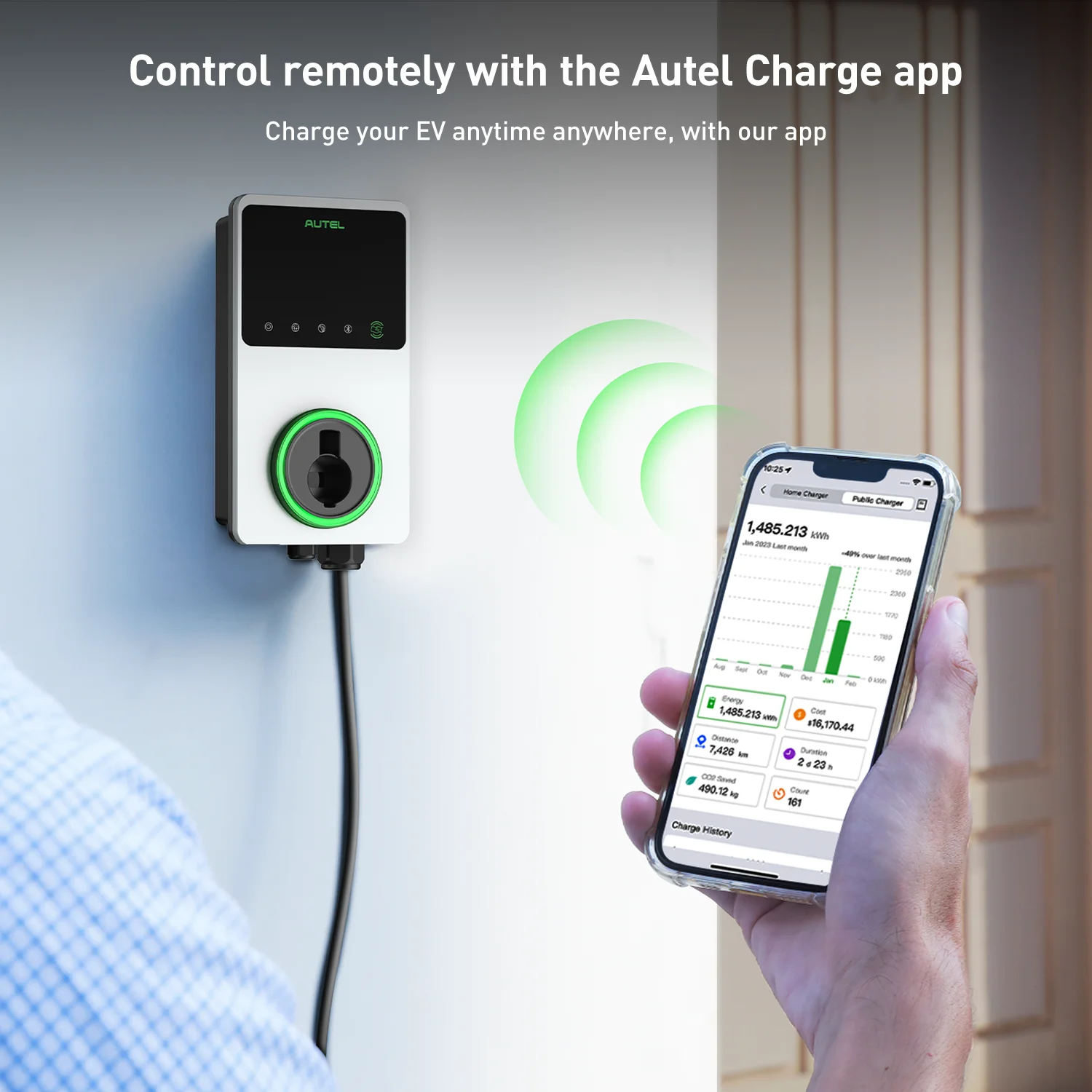

User interface	Autel Charge APP; Autel Charge Cloud
Connectivity	Bluetooth, Wi-Fi, Ethernet, 4G (Optional), CAN, RS485 for energy meter connection
Communication protocols	OCPP 1.6J
User authentication	APP, RFID card
Software Update
Software Update	OTA updates via web portal
Certification and Standards
Safety and compliance	IEC 61851-1, IEC 62311, IEC 62479, IEC 62955, IEC 61439-1/ -7
Certification	CE (TUV) , Energy-star, RoHS…
Warranty	36 months, warranty extension possible
