Tubo Evacuato di Scaldacqua Solare ad Alta Pressione a Tre Strati con Separazione Indipendente per Tutte le Applicazioni

13.606,27 €

CONTROLLO SICURO GARANTITO

Description

Item Name	solar water heater
Separate pressurized solar water heater specification

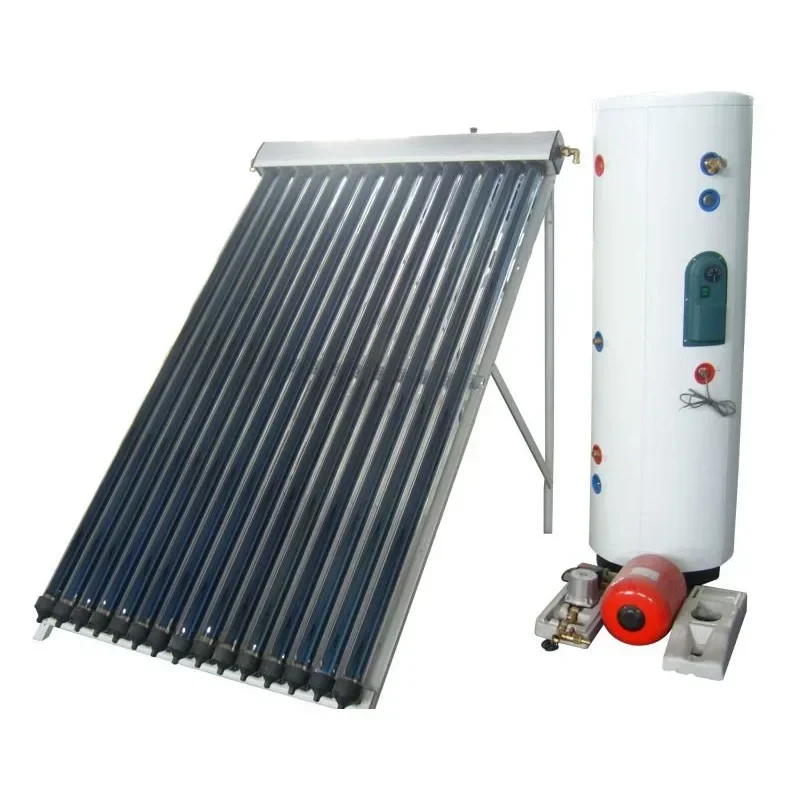

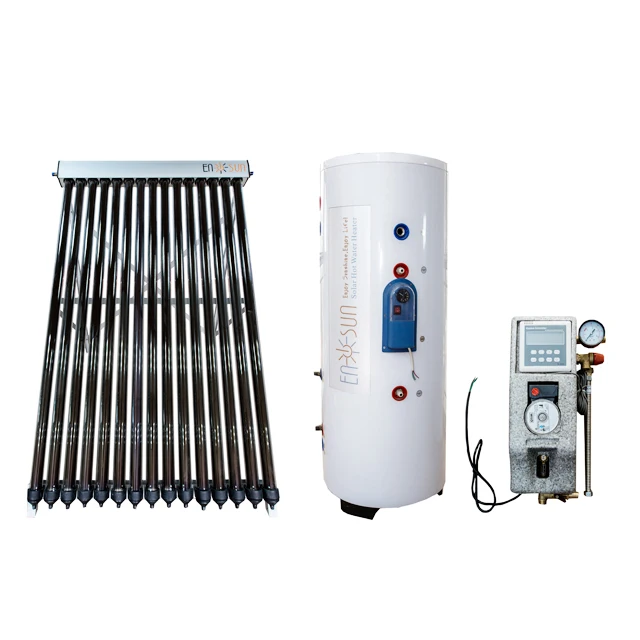

Descripition	Split pressurized solar water heating system
Material of out manifold	0.55mm thickness color steel/ fluorine carbon steel

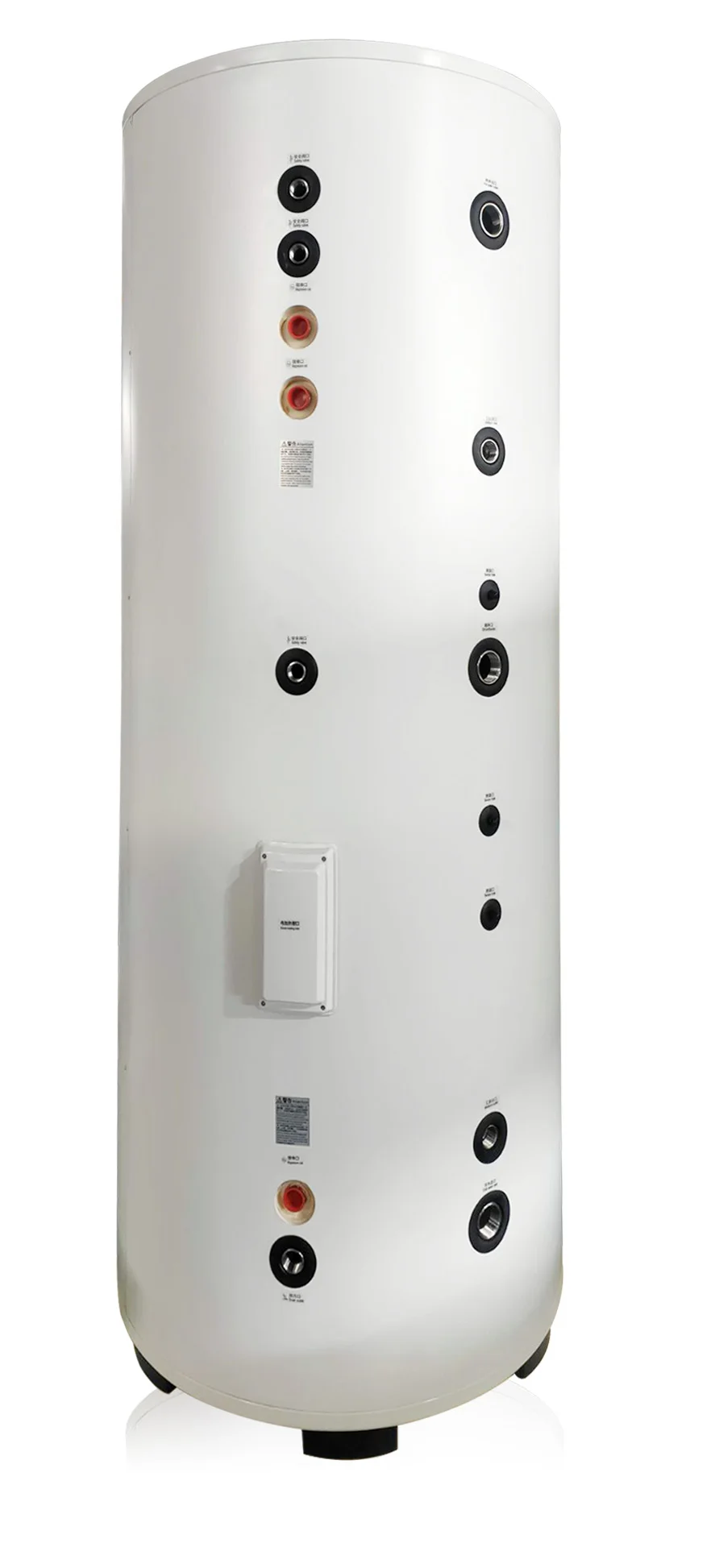

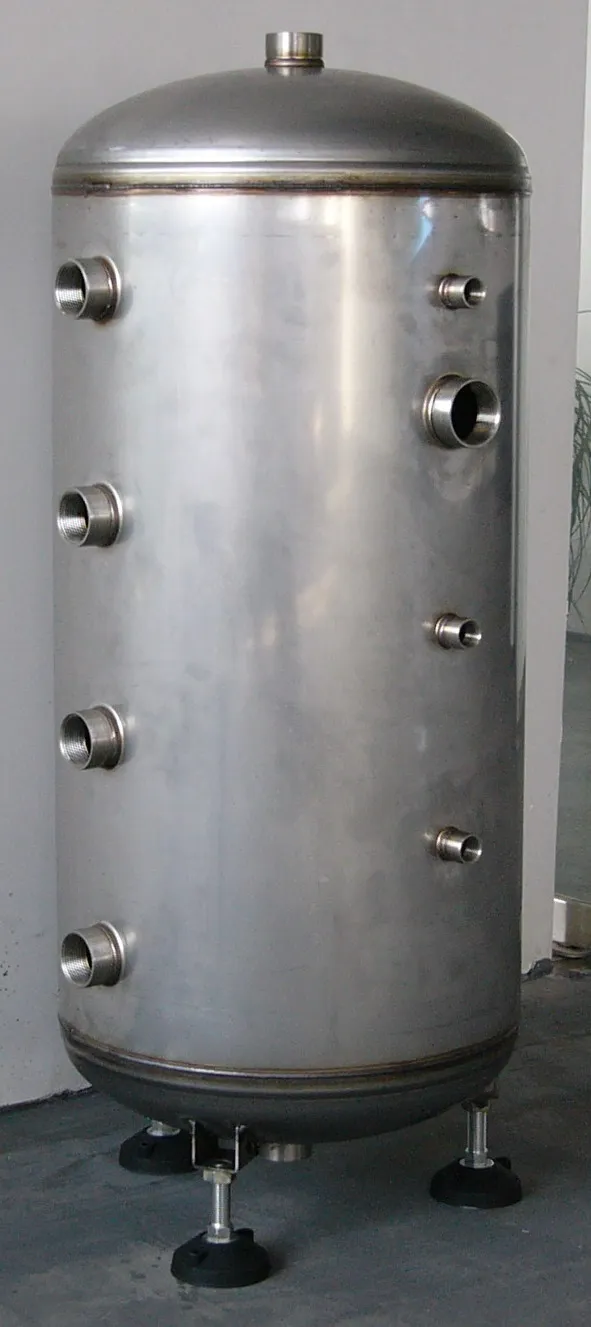

Material of inner tank	Food grade 1.5mm thickness SUS304 stainless steel
Tank insulating layer	50mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet hole	Male G3/4
Max pressure	0.6 Mpa
Solar collector tube	3.3 Borosilicate glass with N/Al coating
Thickness of glass tube	1.6mm
Vacuum tube tightness	P≤0.005 Pa
Absorption	as=0.93-0.96 (AM1.5)
Emission ratio	εh=0.04-0.06 (80C±5C)
Idle sunning property parameters	Y=220~260m2.C/KW
Average heat loss coefficient	ULT=0.6~0.7W/(m2.C)
Bracket:	2.0mm thickness aluminum alloy
Welding:	Argon arc welding
Fastening pieces:	Made of stainless steel screw
Tank capacity	200L
Solar collector	1pcs 58x1800x20tube solar collector
Absorber area	1.875m²
Working station	Normal pump station
Heat exchanger length	18m

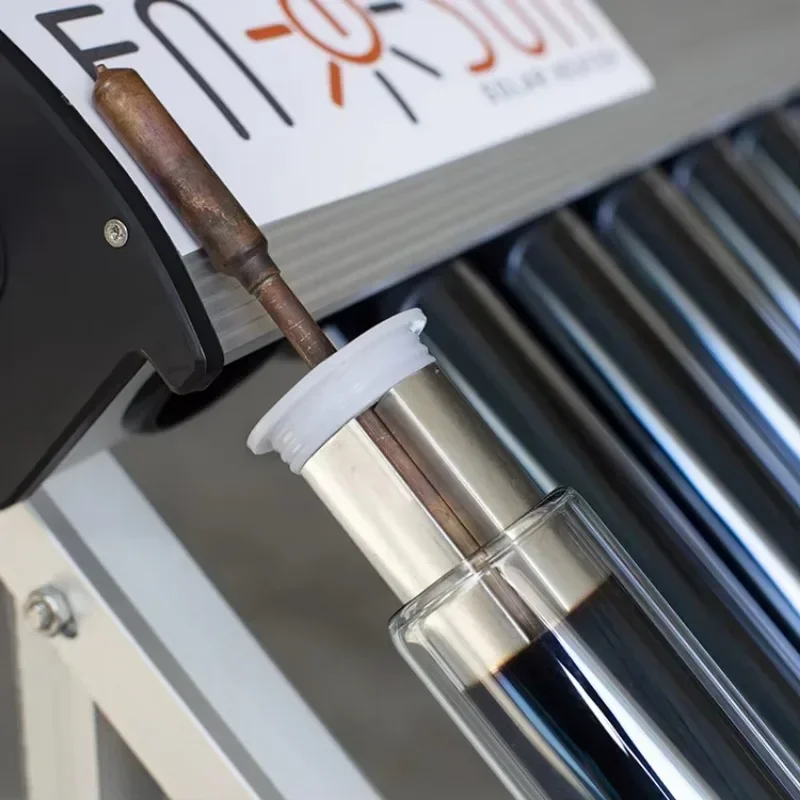

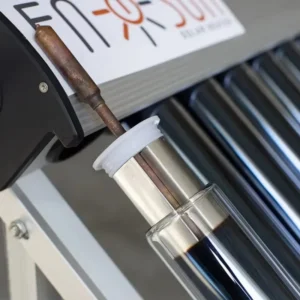

Heat pipe technical data
Item	Heat Pipe
Heat conduction coefficient	>99%
Axial heat transition auantity	0.93-2.49kw/cm²
Heat conduction speed	>200mm/s
Axial temperature difference	1-2centi-degree/m
Starting temperature	20centi-degree
Starting speed	2min
Working temperature range	30centi-degree~300centi-degree
Resistance to high temperature	No deformation in 48hours under 250C high temp condition
Resistance to low temperature	-35C
Life	>10years
