Description

Off the Grid House Solar Wind Turbine 5kw Solar Wind Energy Systems


Solar wind energy systems is a new energy power generation system that utilizes wind energy and solar energy resources. It is wind power generator and solar cell phalanx two kinds of power generation equipment to generate electricity together.

The solar wind hybrid system uses solar cell arrays and wind generators (converting alternating current to direct current) to store the generated electrical energy in the battery pack. When the user needs electricity, the inverter converts the DC power stored in the battery pack into AC power and sends it to the user’s load through the transmission line.
Technical Parameter
5KW solar wind energy systems



Product
Model
Quantity
Description
Wind turbine generator
ES-M 1kw/48v
1
Generator, blade, tail rudder, hood hub
Solar energy panel
Single crystal solar panel 550w
8
Size: 2279*1134*35mm
Solar energy support
550w stent
8
Customer choice
Wind power controller
1kw/DC48v
1
DC: 48v
AC: 110v/220v single phase
Photovoltaic controller
48v
1
DC: 48v; AC:110v/220v single phase
Wind power off-grid inverter
5kw/220v inverter
1
DC 48V input; MPPT intelligent control
Colloid cell
200ah/12v
4
Size锛�530*245*245mm
Kindly Reminder

The above system configurations are for reference only.
We will design the system solution based on your installation conditions and actual requirements.




Off the grid house solar wind turbine 5kw solar wind energy systems

1. The solar wind hybrid system is mainly composed of wind turbines, solar photovoltaic cells, controllers, batteries, inverters, AC and DC loads and other parts. The system is a composite renewable energy power generation system integrating wind energy, solar energy, battery and other energy power generation technologies and system intelligent control technology.

2. Utilizing the complementarity of wind energy and solar energy, a relatively stable output can be obtained, and the solar wind hybrid system has high stability and reliability.
Details Images

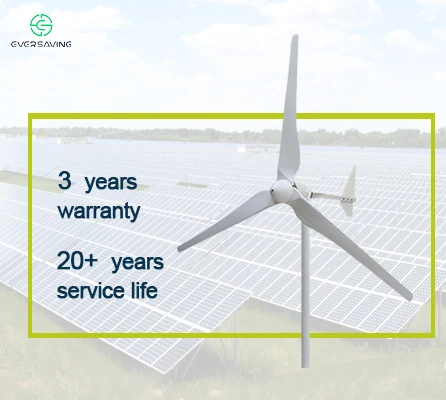

Wind Turbine
> 3 years warranty, 20+ year service life

> Advantage: light weight, small volume > Starting wind speed: 2m/s > Rated wind speed: 12m/s > Security wind speed: ≤50m/s


The wind power generation part is to use the wind turbine to convert the wind energy into mechanical energy, convert the mechanical energy into electrical energy through the wind generator, then charge the battery through the controller, and supply power to the load through the inverter.


Solar Panel
> Max power: 550w > Size: 2279*1134*35 mm > Glass: 3.2mm Tem pered > 25 years power output guarantee


The photovoltaic power generation part uses the photovoltaic effect of the solar panel to convert light energy into electrical energy, then charges the battery, and converts direct current into alternating current through the inverter to supply power to the load.

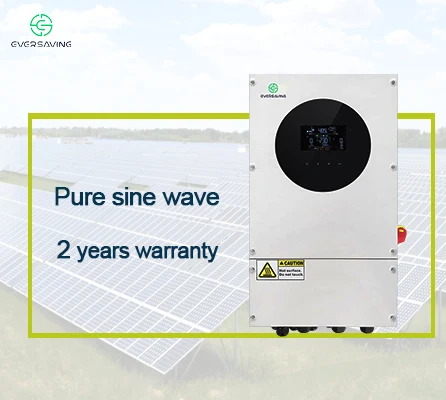

Inverter
> Pure sine wave output

> IP65 waterproof and dust proof makes the inverter suitable for various working environments

The inverter converts the direct current in the battery into a standard 220v alternating current to ensure the normal use of alternating current load equipment. At the same time, it also has an automatic voltage stabilization function, which can improve the power supply quality of the wind-solar hybrid power generation system.

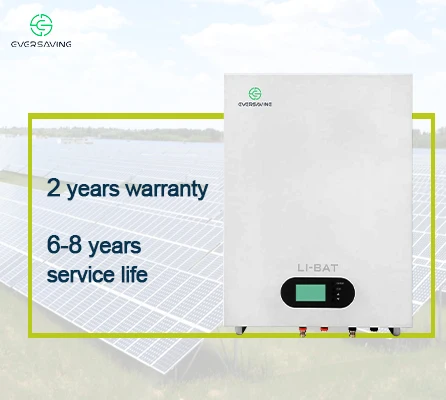

Battery
> Wall-mounted to save space > Standard equipped with LED display, real-time understanding of battery status


The battery part is composed of multiple batteries, which play two roles of energy regulation and load balance in the system at the same time.
It converts the electrical energy output by the wind power generation system and the photovoltaic power generation system into chemical energy and stores it for use when the power supply is insufficient.

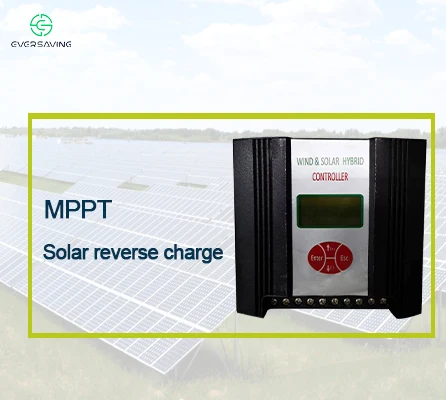

Controller
> DC 48V input; MPPT intelligent control > Protection Function: Solar reverse charge > protection: Solar reverse connection protection, > Battery-over-charge-protection > Battery-reverse connection protection


The control part continuously switches and adjusts the working state of the battery pack according to the changes in the intensity of sunshine, wind force and load.


Cables

> 3 pcs 16mm2*35CM battery cable 4 pcs 16mm2*2M battery connect cable > 4mm2 PV cable 20M

6mm2 wind cable 50M > terminals and MC4 + 1P63A Battery switch
