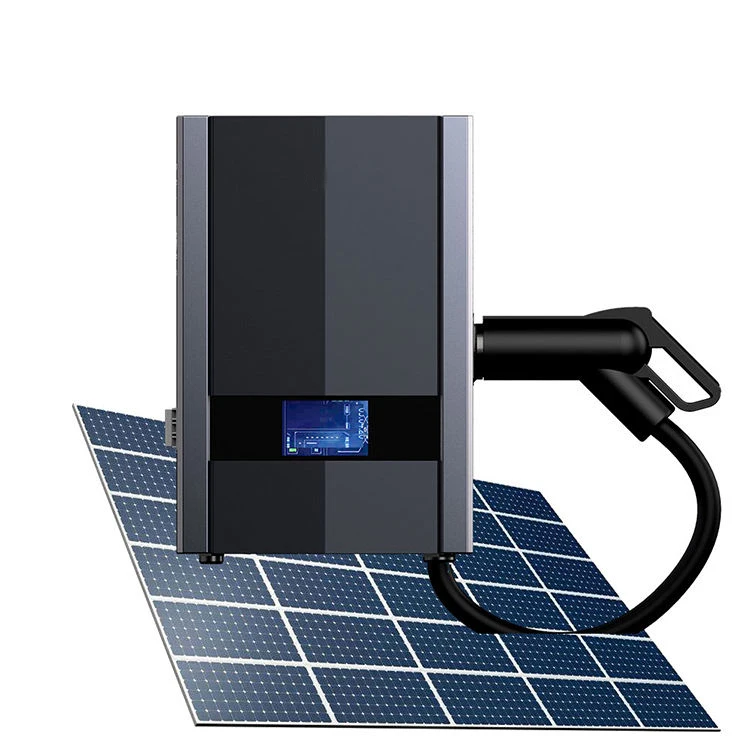

Caricabatterie 7 KW DC EV 20A 32A Monofase OCPP 1.6J Stazione di Ricarica Commerciale EV Caricabatterie Veloce DC EV per Auto GBT
3.777,97 €
Description
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{width:446px}#detail_decorate_root .magic-2{overflow:hidden;width:446px;height:530.4426666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:530px;height:530px}#detail_decorate_root .magic-4{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-5{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-6{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-7{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-8{margin-bottom:0}#detail_decorate_root .magic-9{position:relative;width:100%}#detail_decorate_root .magic-10{width:750px;height:896px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-11{position:relative;left:0;top:0;width:750px;height:896px}#detail_decorate_root .magic-12{width:750px;border-collapse:collapse}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:680px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{text-align:center}#detail_decorate_root .magic-15{font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit;background-color:#44d734}#detail_decorate_root .magic-17{font-size:28px}#detail_decorate_root .magic-18{display:none}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:184px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:271px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:390px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:270px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:185px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-24{background-color:#41d824}#detail_decorate_root .magic-25{font-size:26px}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;width:186px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-27{background-color:#1ac129}#detail_decorate_root .magic-28{font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-29{font-size:26px;background-color:#22da1d}#detail_decorate_root .magic-30{font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-31{background-color:#20ee25;font-size:24px}#detail_decorate_root .magic-32{background-color:#2ced1a}#detail_decorate_root .magic-33{background-color:#44e913}#detail_decorate_root .magic-34{min-height:28px;padding:5px 10px;width:185.8px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-35{font-size:26px;background-color:#46ef2b}#detail_decorate_root .magic-36{font-size:26px;background-color:#1ce72f}#detail_decorate_root .magic-37{background-color:#0feb39}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:836.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:836.25px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:1062.1875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:1062.1875px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:1199.0625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:1199.0625px}#detail_decorate_root .magic-44{overflow:hidden;width:750px;height:1092.1875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:750px;height:1092.1875px}#detail_decorate_root .magic-46{overflow:hidden;width:750px;height:1596.5625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:750px;height:1596.5625px}#detail_decorate_root .magic-48{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-49{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-50{vertical-align:top}#detail_decorate_root .magic-51{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-52{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-53{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-54{padding:0;margin:0;white-space:pre-wrap;font-size:14px}
Patent design Fashion patented appearance design, small and thin products. Unique patented technology, which can meet the protection level for outdoor use dissipation more efficiently and product performance is more stable and reliable safe and reliable protection grade up to IP54, moisture-proof, water-proof, condenseningproof, dustproof, and flame retardant over and under voltage overload short circuit leakage battery anti-reverse connection and other production functions






30KW DC EV charger
Patent design Fashion patented appearance design, small and thin products. Unique patented technology, which can meet the protection level for outdoor use dissipation more efficiently and product performance is more stable and reliable safe and reliable protection grade up to IP54, moisture-proof, water-proof, condenseningproof, dustproof, and flame retardant over and under voltage overload short circuit leakage battery anti-reverse connection and other production functions

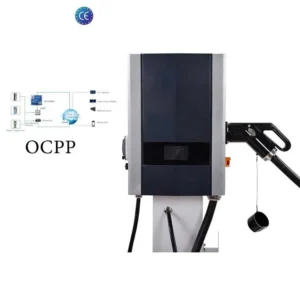

Rich configuration Home version: it can be configured with plug and charge, swipe card and password, and charge by appointment online version: swipe card, VIN code, scan code of WeChat and Alipay, mobile APP, mini program, etc. OCPP can be configured for foreign versions.
Recommend Products
Products Description




Product Paramenters
Model: 7KW AC Input
Input Rating 90-265V AC
AC Input Connection P + N +PE
Max. Input Current 32A
Frequency 50 /60 Hz
Power Factor >0.99@full load
Efficiency 95%
DC Output Output Voltage Range 200-750Vdc
Max. Output Power 7KW
Max. Output Current 20A
User Interface TFT-LCD Touch Panel Yes(swiping card without TFT-LCD Touch Panel)
Push Buttons Yes
Interface Yes
Environmental Operating Temperature -40~85 + 25 TYPE
Humidity 5%-90% RH, non-condens,ng
Altitude 2000m
IP Level IP54
Mechanical Cable Length 5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable
Regulation EN61851-1
Regulation Certification CE , ROHS
Charging protocol GBT27930/CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24
Packing Dimension W:548 × 378× 170mm
Weight Wall:20KG
