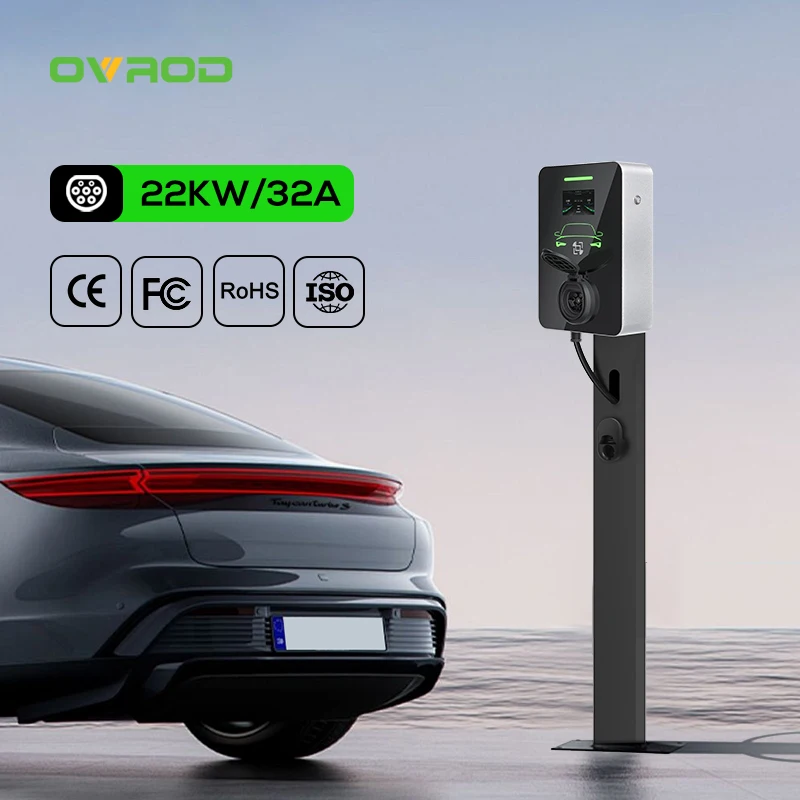

22KW AC Wall-Mounted Electric Car Charger 32A Type2 Home EV Charging Station 3 Phase for Bluetooth WIFI Control New

Supported functions:
display screen, indicator lights, card swiping, Bluetooth

Three types of gun heads(Optional):Type 1/Type 2/Gb/t
Three current (Optional):16A/32A/48A
The EU version of the TJ is compatible with most European AC electric vehicles because of the IEC62196-2 Type 2, eliminating most brand barriers to electric vehicle owners. Using a standard J1772 connector, the TJ allows for wide compatibility with electric vehicles with American standard AC charging interfaces or plug-in hybrid vehicles. Coverage includes Tesla (adapter needed), Ford, GM, Volkswagen, Nissan, Audi and more; perfect for users that own more than one electric vehicle.
The Ovrod EV Charger has been equipped with multiple safety protection features to ensure the charger is safe for use in any scenario, including Under Voltage protection, Over Voltage protection, Overload protection, Over-Temp protection, Short Circuit protection, Ground protection, Earth Leakage Protection (CCID 20), and Lightning protection.
There are four styles to choose from, wall mounted and floor mounted charging stations. Please choose the style you want.
Product Paramenters
Regional Standard
Regional Standard
SAE Standard

(US Version)

IEC Standard

(EU Version)

IEC Standard

(GBT Version)

Power Specification
Voltage
240Vac±15%
230Vac±15% (Single phase)/400Vac±15% (Three phase)
220Vac±15% (Single phase)/380Vac±15% (Three phase)

Power / Amperage

11.5kW / 48A
7.2kW / 32A
7kW / 32A
–
11kW /16A
10.5kW / 16A
–
22kW /32A
21kW / 32A
Frequency
50-60Hz
50-60Hz
50-60Hz
Function
User Authentication
RFID (ISO 14443)
Network
LAN Standard (4G or Wi-Fi Optional with Surcharge)
Connectivity
OCPP 1.6 J
Protection & Standard
Certificate
CE,RoHS, FCC,ISO
–
Charging Interface
SAE J1772 , Type 1
IEC 62196-2 , Type 2

GB/T2023.42, Type 2

Safety Compliance
UL2594 , UL2231-1/-2
IEC 61851-1 , IEC 61851-21-2
RCD
CCID 20
TypeA + DC 6mA
Multiple Protection
Overvoltage protection, overcurrent protection, leakage protection, over temperature protection, lightning protection, etc
Environmental
Enclosure Material
PC+ASA
Operating Temperature
-77°F to 122°F
-25°C ~ +50°C
Indoor / Outdoor
NEMA Type4
IP65
Relative Humidit
Up to 95% non-condensing
Cable Length
18ft (5m) Standard , 25ft (7.5m) Optional with Surcharge
