Batteria di stoccaggio di energia del sistema solare Yangtze 24V 400AH con 4*12V 200Ah.
Batteria di stoccaggio di energia del sistema solare Yangtze 24V 400AH con 4*12V 200Ah. - Image 2
Batteria di stoccaggio di energia del sistema solare Yangtze 24V 400AH con 4*12V 200Ah. - Image 3
Batteria di stoccaggio di energia del sistema solare Yangtze 24V 400AH con 4*12V 200Ah. - Image 4
Batteria di stoccaggio di energia del sistema solare Yangtze 24V 400AH con 4*12V 200Ah. - Image 5
Batteria di stoccaggio di energia del sistema solare Yangtze 24V 400AH con 4*12V 200Ah. - Image 6

Batteria di stoccaggio di energia del sistema solare Yangtze 24V 400AH con 4*12V 200Ah.

1.308,84 €

Aggiungi alla lista dei desideri
CONTROLLO SICURO GARANTITO
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1005008615047087 Category: Tags: ,

Description

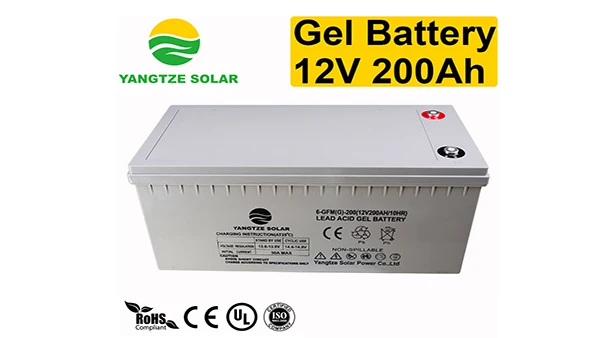

Yangtze Solar Power System Energy Storage Battery 24v 400ah With 4*12v 200ah .



Solar power system energy storage battery 24v 400ah with 4*12v 200ah .



Key Features :
Maintenance-Free ,Absorbent Glass Mat Technology
Low Self Discharge
Long Designed service Life ,Deep Cycle
Excellent Discharge Performance
Environment Friendliness
Wide suitability of ambient temperature range



Applications :

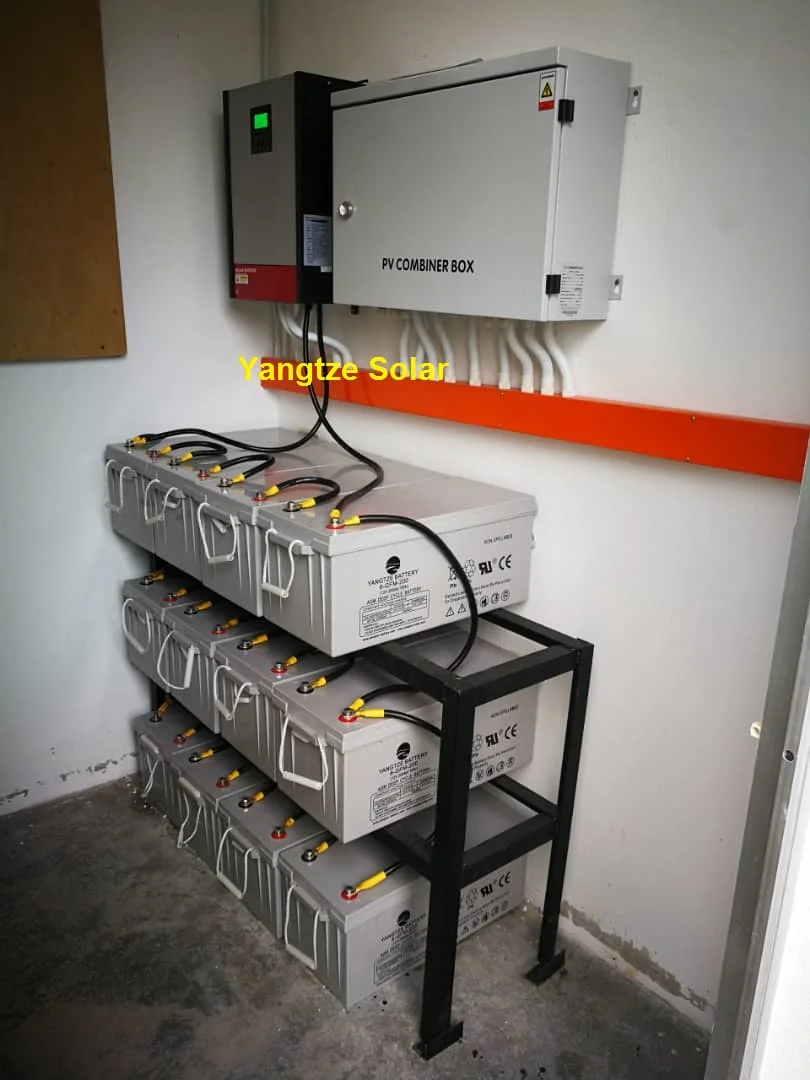

Solar and wind energy storage system
EPS and UPS battery backup
Signal system , emergency lighting system , security system
Telecommunication Equipment
Power source for portable devices or tools



1. Functional Parameter 5. Environment Temperature
Nominal Voltage 12VDischarge Temperature -20~60鈩�
Nominal Capacity (10 hour rate)200AhCharge Temperature 0~50鈩�
Number of Cells 6cells Storage Temperature -20~60鈩�
2. Rated Capacity at 25鈩� (77° F)6. Inner Resistance & Max . Discharge Current
10 hour rate (0.1C, 10.8V)200AhFully Charged battery at 25鈩� (77° F)3mΩ
3 hour rate (0.25C, 10.8V)153.3AhMax. Discharge Current 3000A (5s)
1 hour rate (0.55C, 10.5V)110.4AhShort Circuit Current 10000A
3. Capacity affected by Temperature (10 hour rate)7. Self-discharge  at 25鈩� (77° F)
40鈩�   (104° F)103%Capacity after 3 month storage 91%
25鈩�   (77° F)100%Capacity after 6 month storage82%
0鈩�    (32° F)85%Capacity after 9 month storage73%
-15鈩�   (5° F)65%Capacity after 12 month storage64%
4. Dimension and Weight 8. Constant voltage charging at 25鈩� (77° F)
Length 522mmCyclic use14.4~14.9V
Width240mmMaximum charging current 50A
Height 219mmTemperature compensation -30mV/鈩�
Total Height 223mmFloat use 13.6~13.8V
Reference Weight 60kgTemperature compensation -20mV/鈩�















Certifications



Packaging & Shipping



Company Information

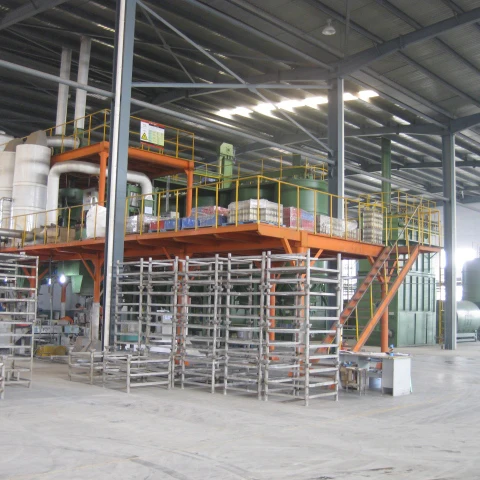

Battery factory Founded in 1996 , 2 million batteries annual production capacity

Products including Lithium battery, valve regulated lead acid battery , Gel battery , deep cycle battery  , OPzV and   OPzS battery

Products are exported to more than 150 countries
Products are certified by CE , UL ,Rohs

Mature and very well respected AGM and GEL technologies for valve-regulated lead-acid                 batteries ranging from 2Ah to 3000Ah
